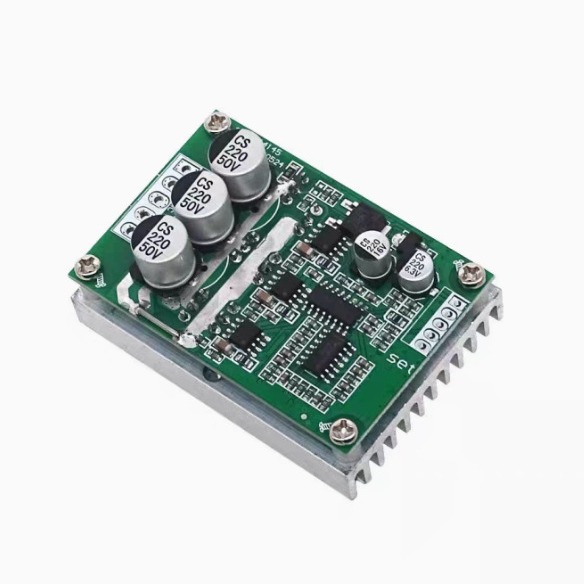

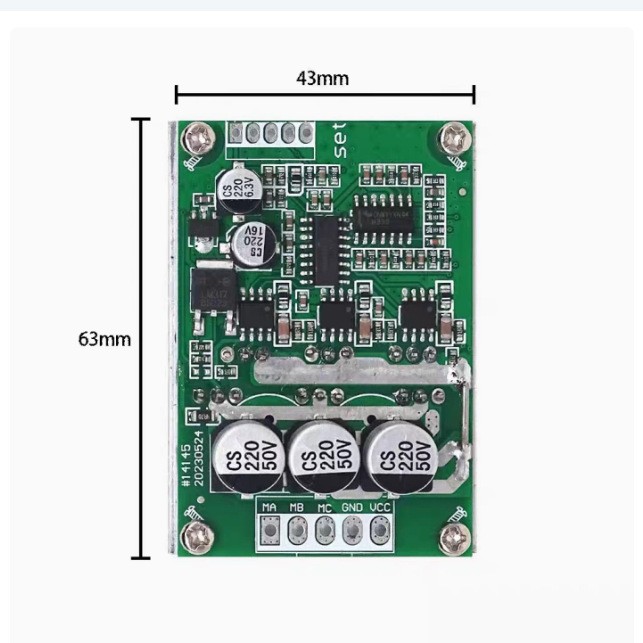

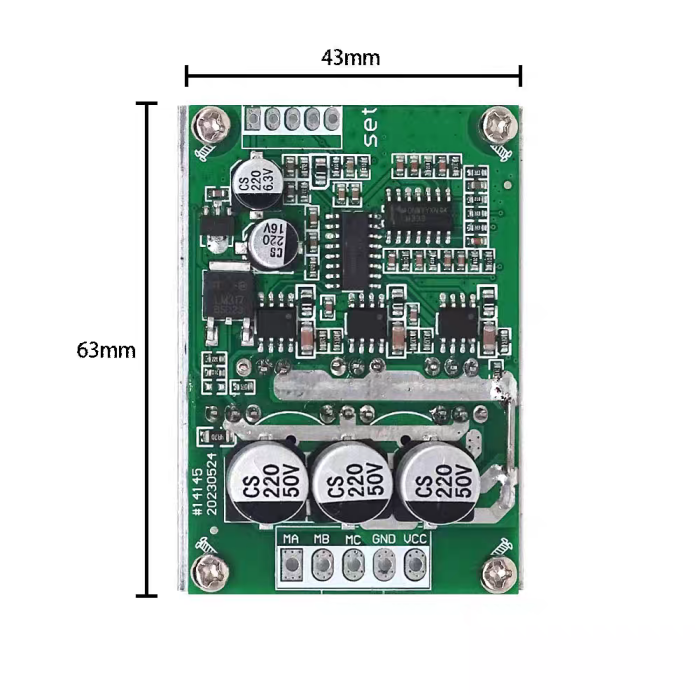

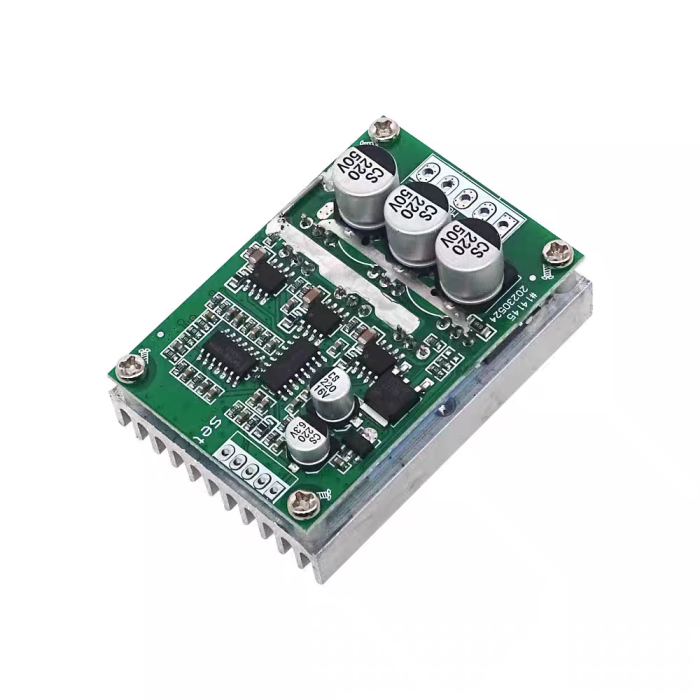

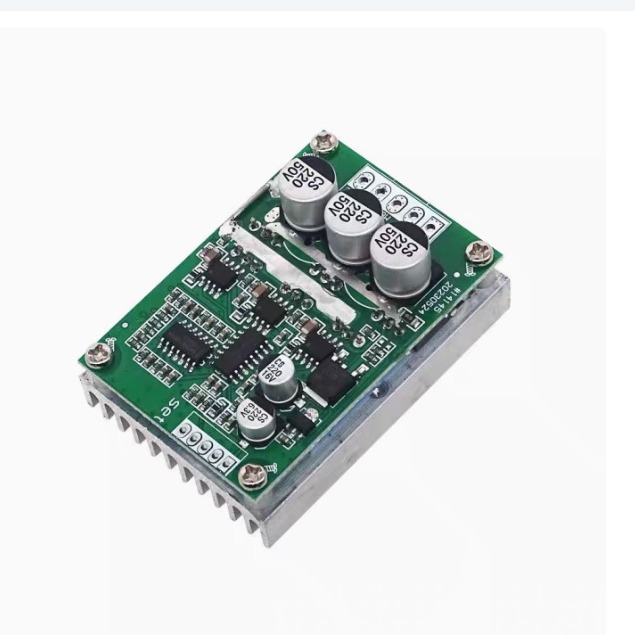

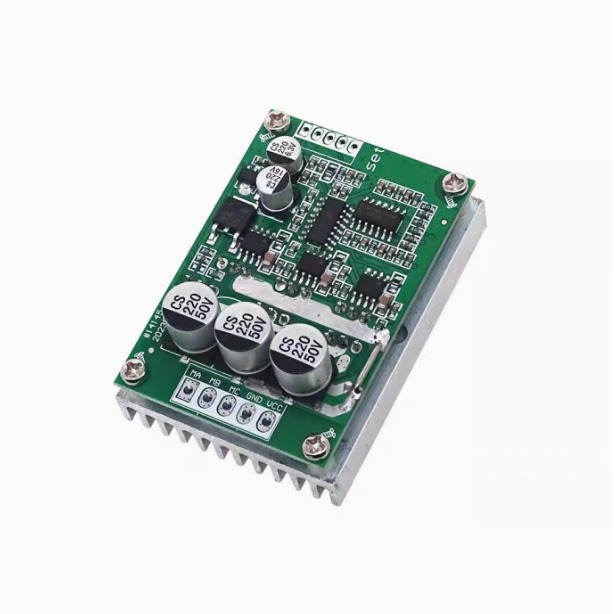

500W high-power brushless controller Hall-free brushless drive electric speed regulation 15A speed regulation forward and reverse DC12-36V

Product Introduction

High power Hall free brushless drive, wide voltage DC12-36V, maximum current 15A, maximum power 500W. Most motors tested have good compatibility, but a small number of motors may not be fully compatible. Specific tests need to be conducted by oneself. It is best to use an adjustable power supply current limiting mode to test whether the actual no-load current is abnormal, in order to avoid high-power burning of the drive in the event of an abnormality.
The driver supports forward and reverse switching, potentiometer speed regulation. Potentiometers can generally be used for 10-50K, or PWM 5V signal speed regulation can be used. The specific definition can be seen in the introduction diagram. The positive and negative poles of the driver input power supply must not be connected incorrectly, and the output UVW three-phase should not be short circuited, otherwise it will burn the driver. The driver comes with 18mm thick heat dissipation fins, and high-power use depends on the actual heat generation. If the heat generation is large, a fan should be added for forced air cooling.

Notes:
The drive does not come with sockets and wires, and requires soldering with an electric iron. The forward and reverse switches and speed control potentiometers need to be prepared by oneself. When soldering with a soldering iron, it is important to ensure good grounding to avoid damage to the drive caused by induced electricity.

BLDC three-phase DC brushless with Hall 380W high-power PLC brushless motor drive board motor controller
Attention: This drive is a DC three-phase brushless control board that requires the motor to have a Hall sensor in order to function properly

The product is suitable for DC brushless Hall motors with an electrical angle of 120 degreesNewly upgraded BLDC wide voltage 6-60V high power 380W DC three-phase brushless with Hall controller, added PLC 0-5V analog control PWM duty cycle control

Kind reminder: The product is independently developed by the company, and the circuit schematic is not provided. Please understand. The key IC of the anti copy board has been polished. If you mind, please do not take photos

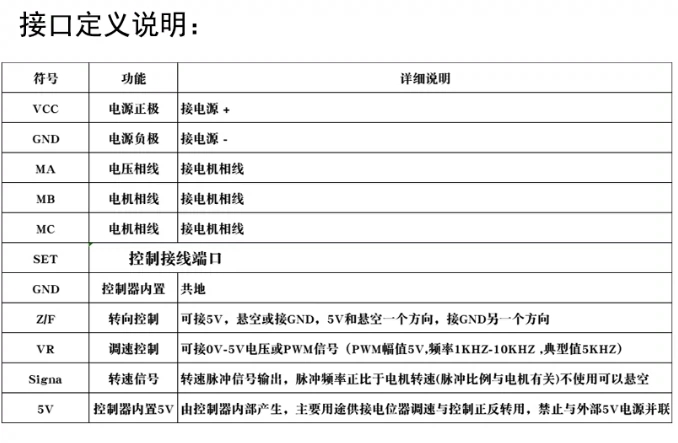

Interface Description:

1. MA MB MC phase line output connected to motor

2. The 5V GND motherboard comes with a 5V power supply (current not exceeding 30mA)

3. VCC GND motor main power supply (external DC power supply)

4. SC speed pulse signal output

5 forward and reverse control interfaces (can also be connected to external switches)

6. VR speed control signal input (built-in potentiometer speed control on the board or external 0-5V analog PWM duty cycle support dual signal input speed control)

7. Ha Hb Hc+5V GND Hall signal power input, generally motors with Hall have corresponding 5 wires
