The wire free version makes installation more convenient and fast!

Repeatedly remind friends without electronic foundation not to purchase, in order to avoid economic losses!

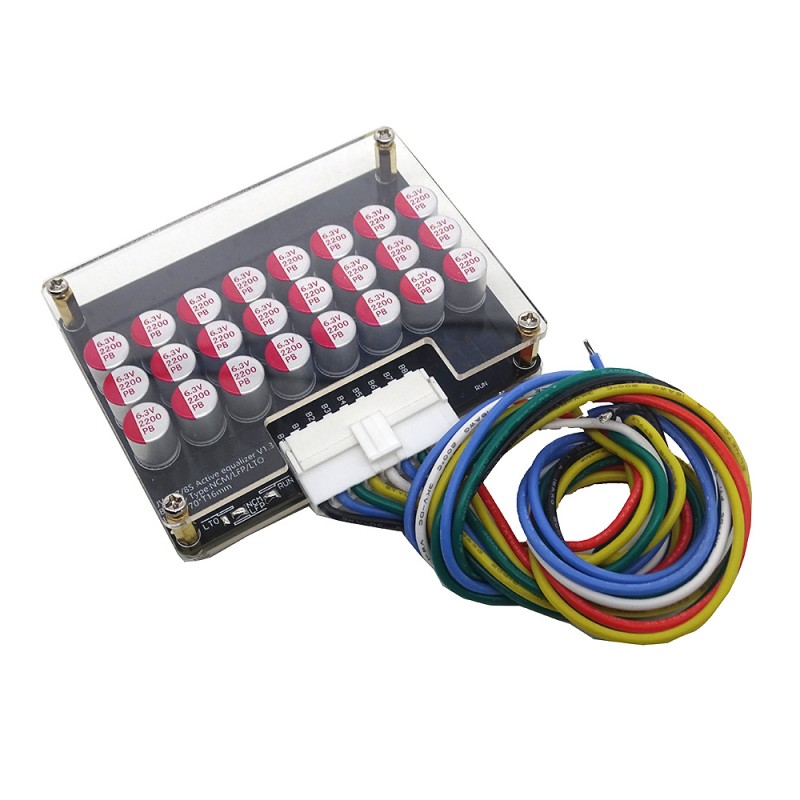

Lithium battery active balancing energy transfer board Lithium battery active equalizer High efficiency energy transfer balancing

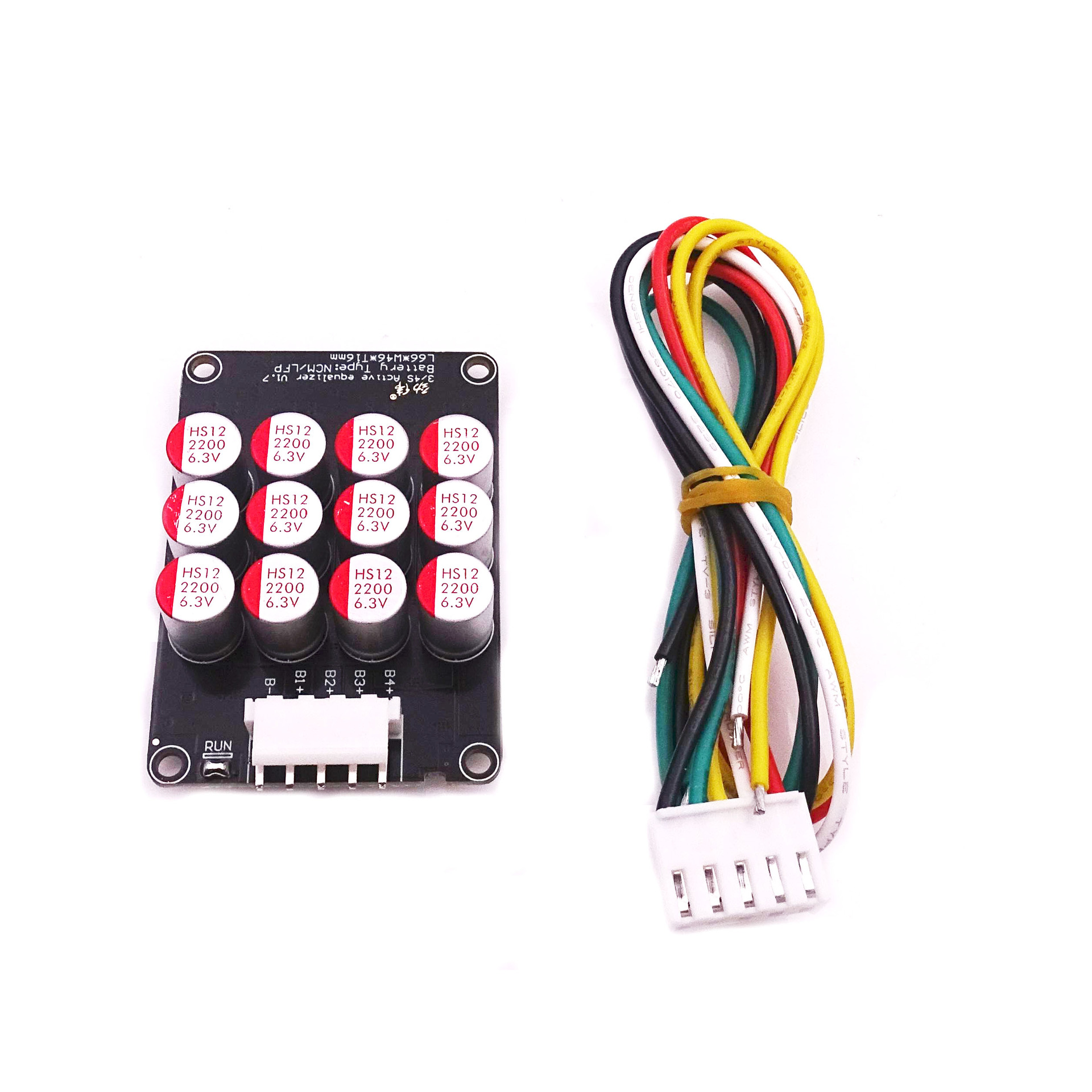

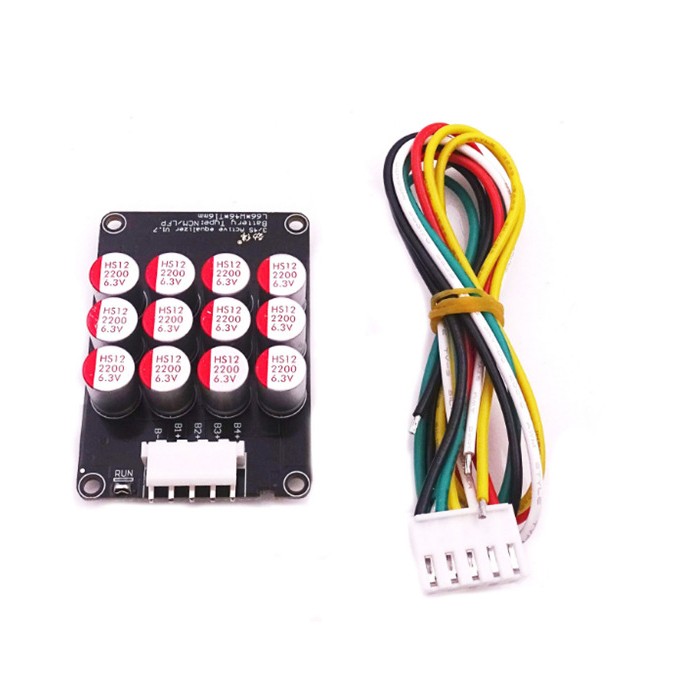

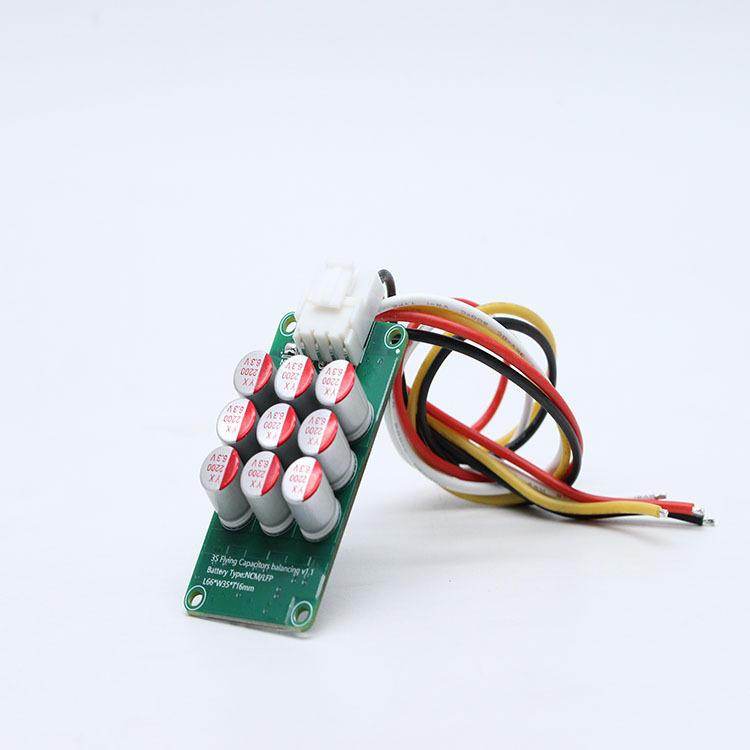

Capacitive energy transfer balance board (high-precision 5mv, whole group balance, not adjacent balance)）

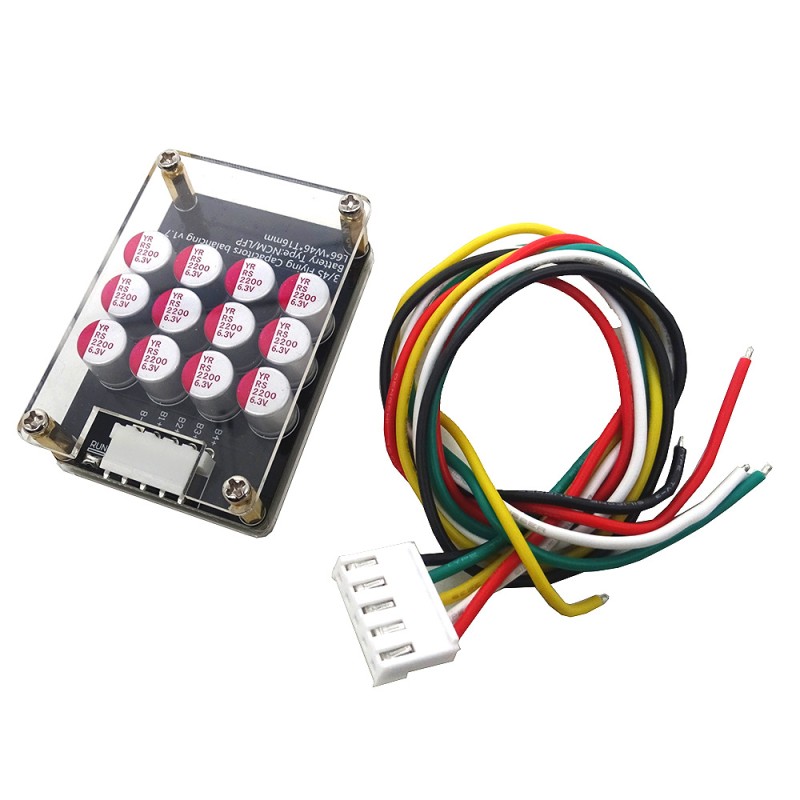

Capacitive energy transfer balance board (upgraded version)

Technical Specifications

Working voltage of 1.8V-4.5V, suitable for ternary lithium, lithium iron phosphate, and lithium titanate.

Working principle: The capacitor flies to transfer the charge, and the balancing board is connected to the battery to start balancing work. It uses original brand new ultra-low internal resistance MOS, 2OZ copper thick PCB, and balanced current0-5.5AThe more balanced the battery, the smaller the current. Reserve a wiring position for the sleep switch, and the working current of the sleep power-off mode is less than 0.1mA,Balanced voltage accuracy5mvWithin!

The static current is around 12 milliamps, and it is recommended that the battery capacity be suitable for batteries with a capacity of 60-300AH!

Equipped with undervoltage sleep protection, it will automatically stop entering sleep mode when the voltage is below 3.0V, with a standby power consumption of less than 0.1mAh

 Lithium battery pack high current active balancing point. This link
