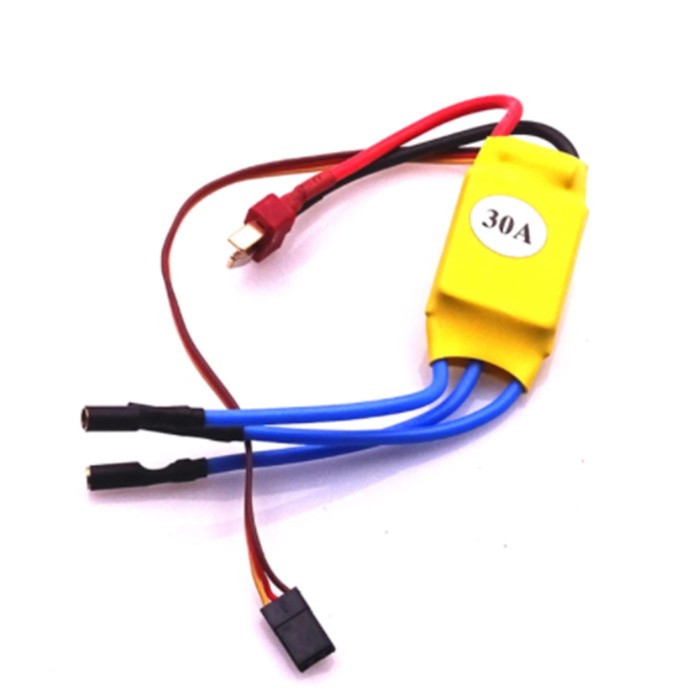

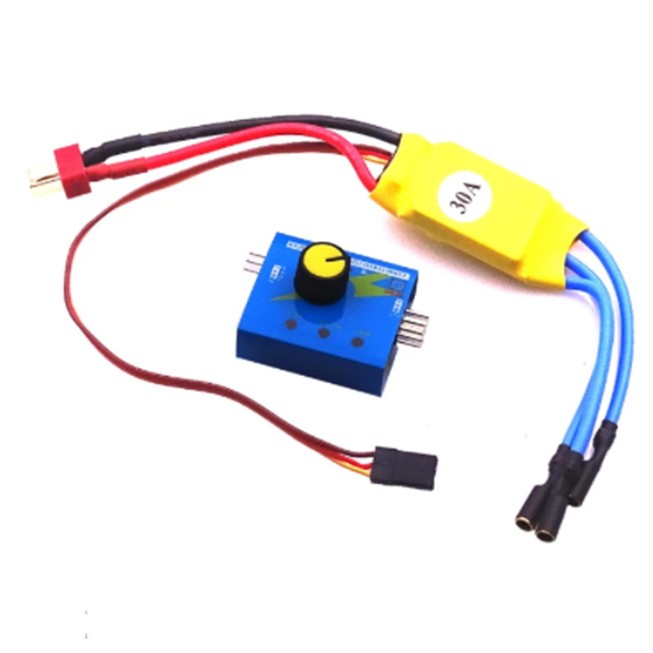

XXD new Xida HW30A 40A brushless ESC motor multi-axis electronic governor

 Product Parameters:1. Safe power on function: When the power is turned on, the motor will not start immediately regardless of the position of the throttle lever, avoiding personal injury;

2. Throttle stroke calibration function: adapts to different remote control oils
The difference in door travel improves the linearity of throttle response, with smooth and delicate speed control feel and first-class speed control linearity;

3. Program setting items:
Brake setting: No brake/With brake, the factory default value is no brake.
Battery type: Li xx (lithium battery)/Ni xx (nickel cadmium or nickel hydrogen), default value is Li xx (lithium battery).
Low voltage protection mode: reduce power/turn off output, default value is to reduce power.
Low voltage protection threshold: low/medium/high, default value is medium cut-off voltage.
When Li xx batteries are set to be used, the number of lithium batteries will be automatically determined, and the cut-off voltages for each battery under low/medium/high conditions are 2.6V, 2.85V, and 3.1V, respectively.
When setting the use of Ni xx batteries, the voltage of the battery pack is automatically detected when the electric regulator is powered on. The cut-off voltage for low/medium/high situations is 0%, 45%, and 60% of the input voltage at startup (0% means low voltage protection is not provided)
Startup mode: Normal/Soft/Ultra Soft startup, default value is Normal startup.
Normal start is suitable for fixed wings and can quickly start the motor within 0.2 seconds
Soft start/ultra soft start suitable for helicopters; The initial speed for both soft start and ultra soft start is relatively low, taking 1 second and 2 seconds respectively from start to full speed. However, if the throttle is turned off after start and restarted within 3 seconds, they will all start in normal mode to avoid crashing due to slow response during some stunt flights.
Entering angle: low/medium/high, default value is medium entering angle.
In general, low pitch angle can accommodate more motors, but to improve efficiency, it is recommended to use low pitch angle for 2-pole motors and medium pitch angle for 6-pole and above motors. To increase the speed, the feed angle can be set to a high feed angle. After changing the angle setting, it should be tested on the ground before flying.
Restore Factory Defaults

4. Comprehensive protection function:
Undervoltage protection: set by the user through the program;
Overvoltage protection: If the input voltage exceeds 18 volts, it will not start and will automatically protect, while emitting a rapid "beep" alarm sound;
Overheating protection: Equipped with a built-in temperature detection circuit, the MOS transistor automatically shuts off when the temperature is too high;
Remote control signal loss protection: After losing the remote control signal for 1 second, the power will be reduced, and if there is no remote control signal for another 2 seconds, the output will be turned off;

Process Characteristics

The power input terminal adopts * * ultra-low impedance large capacity electrolytic capacitors, greatly improving anti-interference ability;
2 output MOSFET power transistor equipped with independent heat sink, reducing device temperature rise and improving system high current operation capability;
3. Controlled by a microcontroller;
The microcontroller adopts an independent voltage regulator chip to avoid power interference caused by BEC load changes and improve the stability of microcontroller operation;
