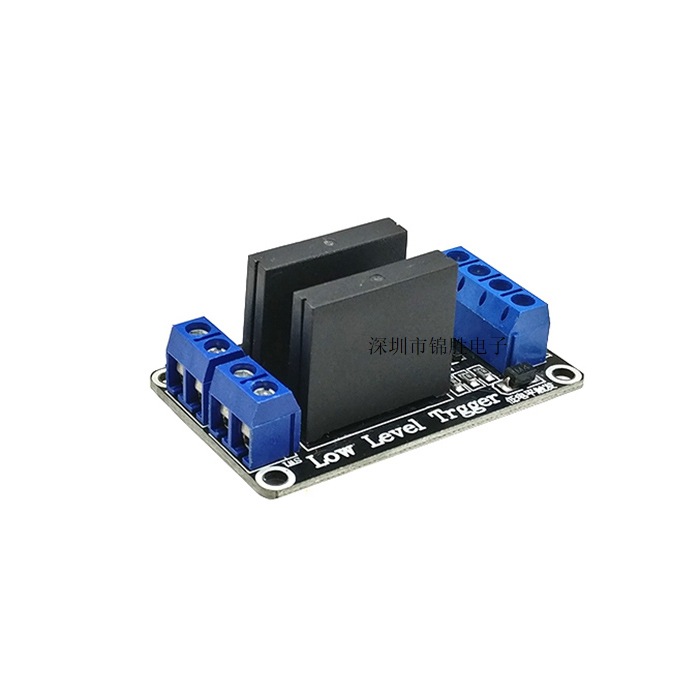

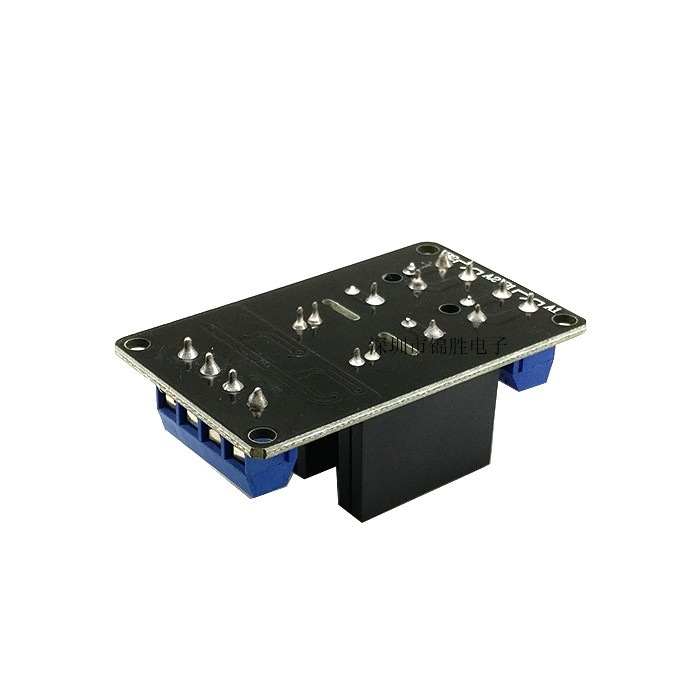

2-way 5V high level solid state relay module with Fuse solid state relay 250V2A

1.5V lowLevel Solid State Relay Module

Product Introduction

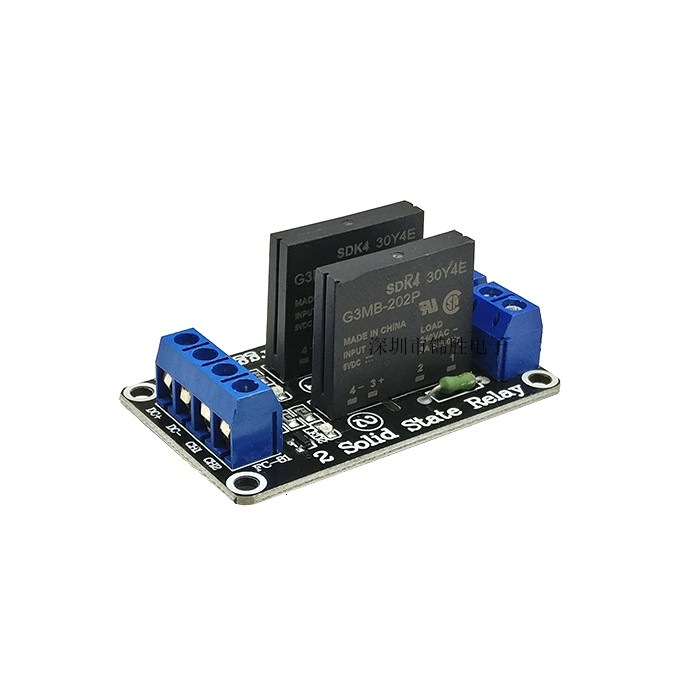

oneOmron 5V solid-state relay 240V 2A, output with resistive fuse 240V 2A
2. Size: 55 * 33 * 25 (length * width * height) Net weight: 21.5g
3. Input power supply: 5V DC (160MA)
fourInput control signal voltage:

          (0-2.5V low level relay ON) (3.3-5V)State high-level relay OFF

fiveThe blue KF301 terminal is more convenient for connecting control wires.

Module interface:

Input section:
DC+:Connect the power supply positively (supply power according to the relay voltage)
DC-:Connect to negative power supply
CH1: 1Relay module signal trigger terminal(Low level triggering is effective)
CH2: 2Signal trigger terminal of the relay module(Low level triggering is effective)
Meaning of high and low levels:
High level triggerrefers toThere is a positive voltage between the signal trigger terminal (IN) and the negative terminal of the power supply, usually using the positive and trigger terminals of the power supplyA triggering method of connection, in which the relay is closed when there is a positive voltage or triggering voltage at the triggering end.
Low level triggerrefers toWhen the voltage between the signal trigger terminal and the negative terminal of the power supply is OV, or when the voltage at the trigger terminal is lower than the positive voltage of the power supply, to the point where it can be triggered, the relay is pulled in, usually by connecting the negative terminal of the power supply with the trigger terminalA triggering method of connection that causes the relay to close.
Electrical parameters:
Voltage version quiescent current  operating current  Trigger voltage Trigger current
 oneRoad 5V     0mA     12.5mA0-2.5V    2mA
 twoRoad 5V     0mA     22.5mA    0-2.5V    2mA
Product Instructions:
oneModule power supply: The power supply must be DC, and the voltage must match the voltage of the relay

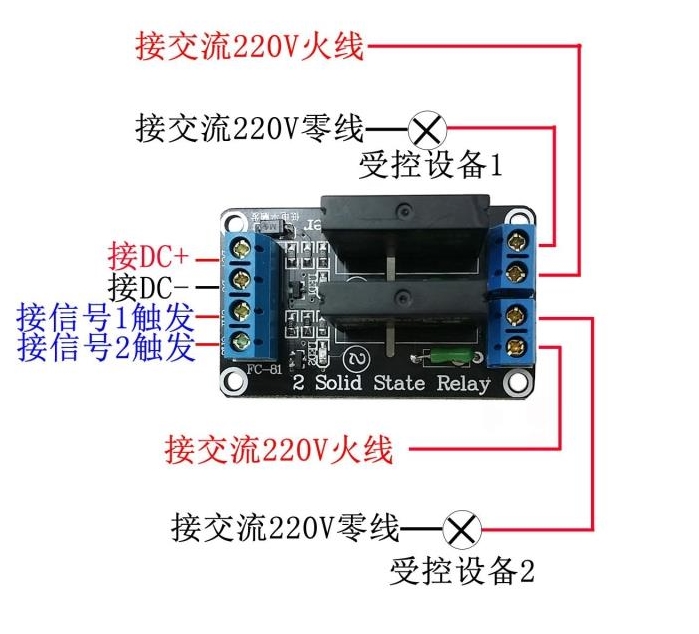

twoWiring method:

When the signal trigger terminal has a low level trigger, the relay will turn on and the device will work with power
