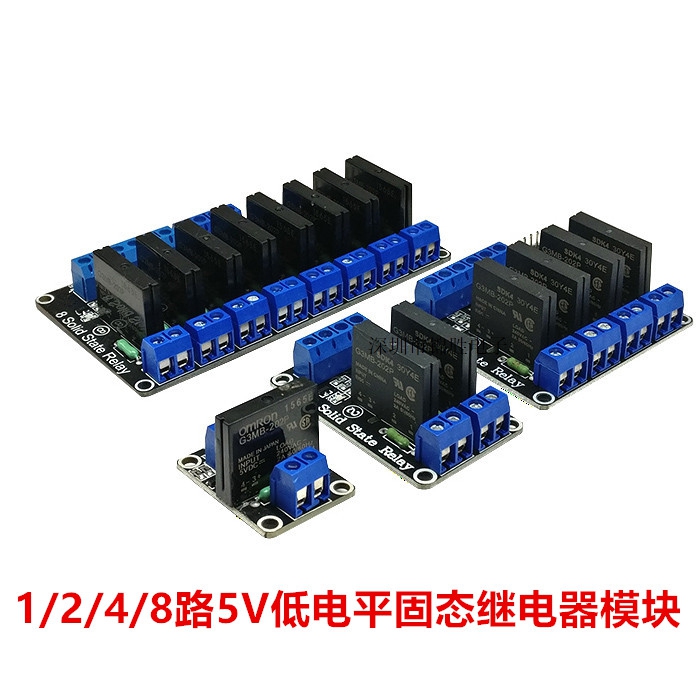

1.5V lowLevel Solid State Relay Module

Product Introduction
oneOmron 5V solid-state relay 240V 2A, output with resistive fuse 240V 2A
2. Size:

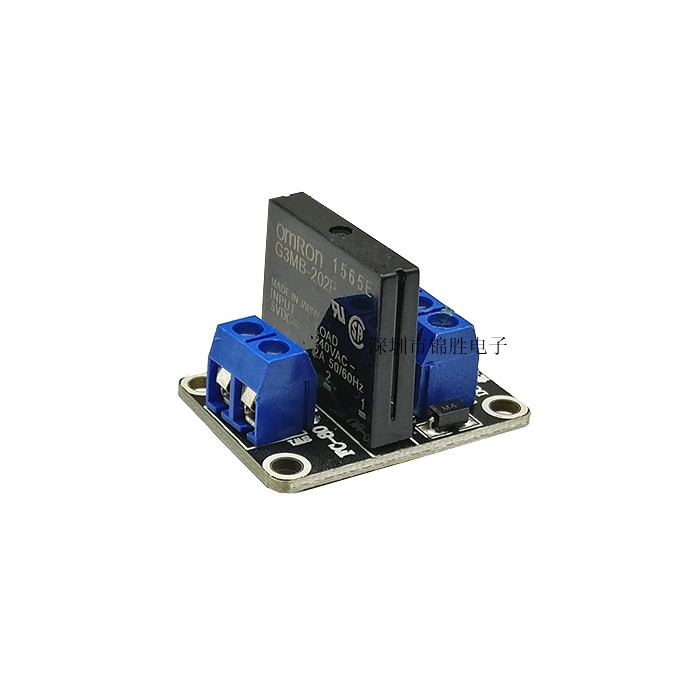

Route 1: 25 * 34 * 25 (length * width * height) Net weight: 13g

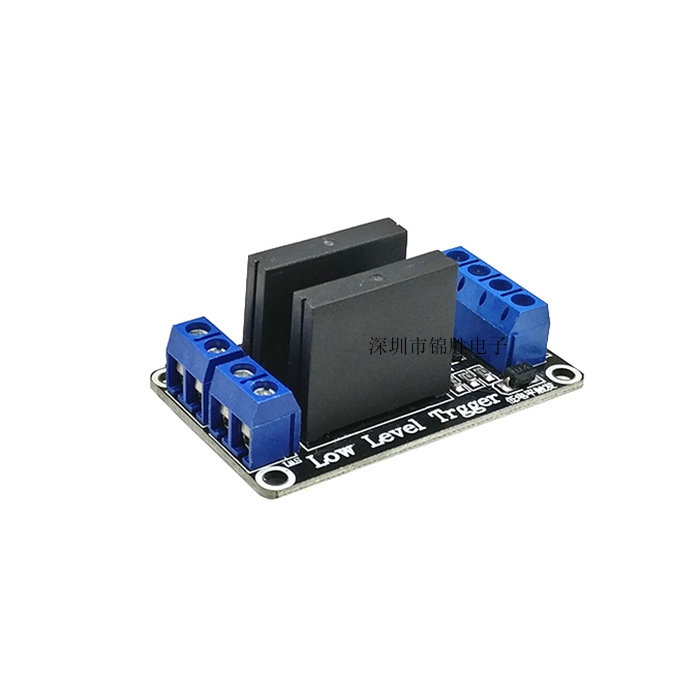

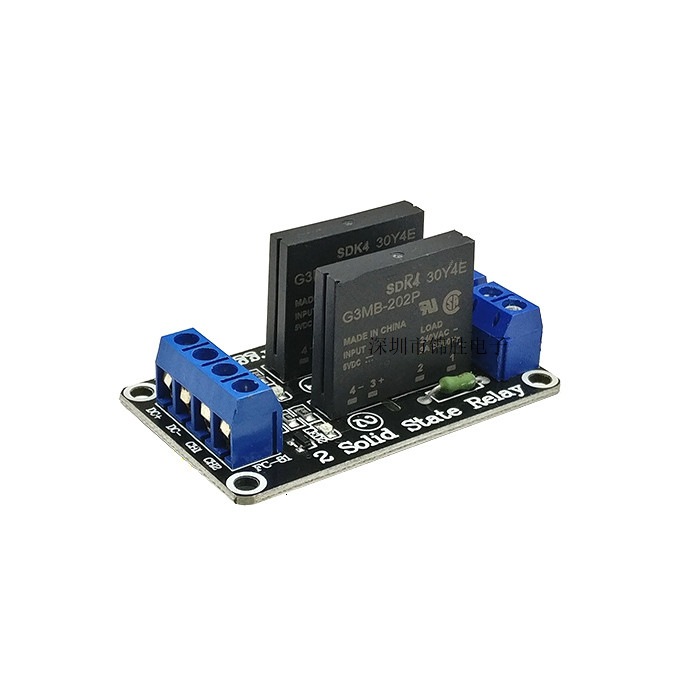

Route 2: 55 * 33 * 25 (length * width * height) Net weight: 21.5g

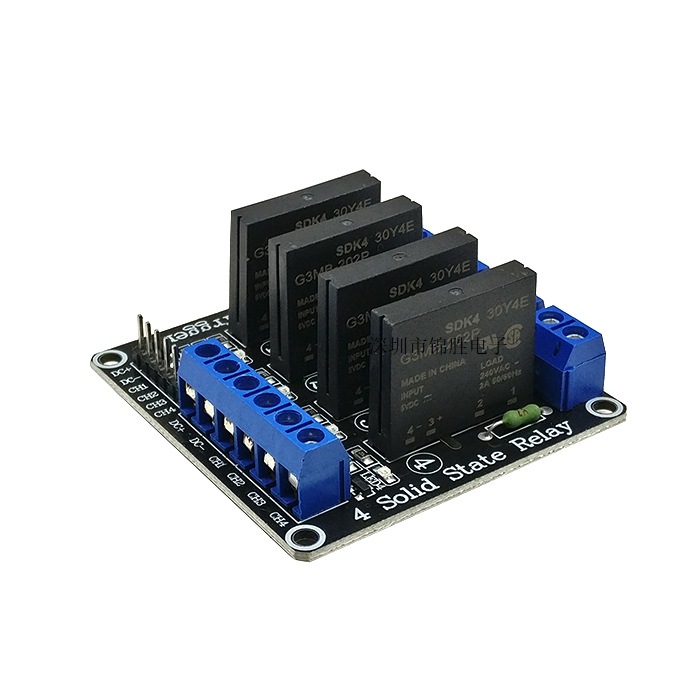

Route 4: 57 * 55 * 25 (length * width * height) Net weight: 40g

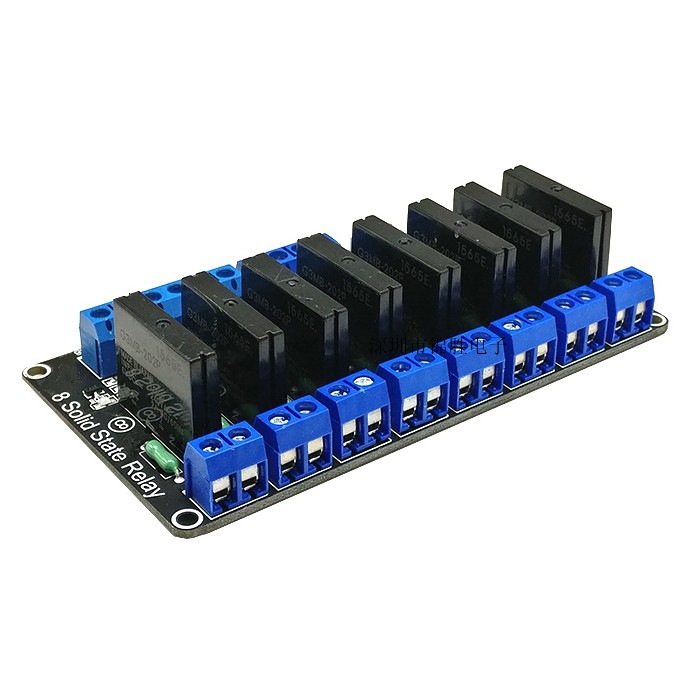

Route 8: 106 * 56 * 25 (length * width * height) Net weight: 70g

3. Input power supply: 5V DC (160MA)
fourInput control signal voltage:

      (0-2.5V low level relay ON) (3.3-5V)State high-level relay OFF

Module interface:

Input section:

DC+:Connect the power supply positively (supply power according to the relay voltage)

DC-:Connect to negative power supply

CH:Relay module signal trigger terminal(Low level triggering is effective)

Meaning of high and low levels:

High level triggerrefers toThere is a gap between the signal trigger terminal (IN) and the negative power supply

A forward voltage is usually applied to the positive and trigger terminals of the power supplyConnected One

When there is a positive voltage or a triggering voltage at the triggering end, a triggering method is usedAt this time, the relay is engaged.

Low level triggerrefers toVoltage between signal trigger terminal and negative power supply

When it is OV, or in other words, the voltage at the triggering end is lower than the positive voltage of the power supply,

When the voltage is low enough to trigger, the relay is pulled in, usually by turning on the power supply

Negative and Trigger EndA triggering method of connection that causes the relay to close.

Electrical parameters:

Voltage version quiescent current  operating current  Trigger voltage Trigger current

 5V     0mA       12.5mA    0-1.5V    2mA

Product Instructions:

oneModule power supply: The power supply must be DC, electricity

The voltage should match the voltage of the relay

twoWiring method:

When the signal trigger terminal has a low level trigger, the relay will turn on and the device will work with power
