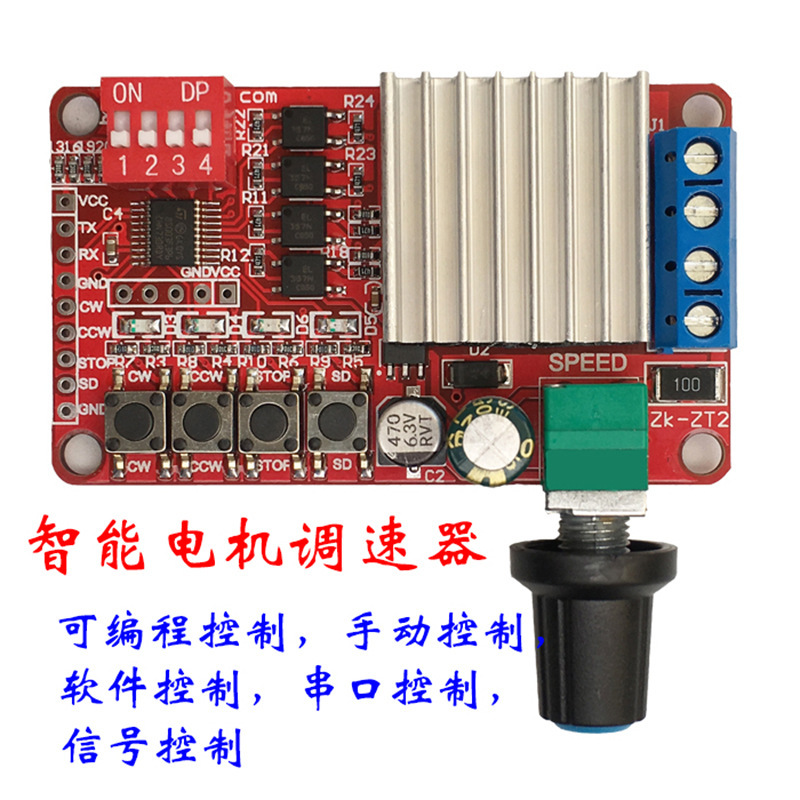

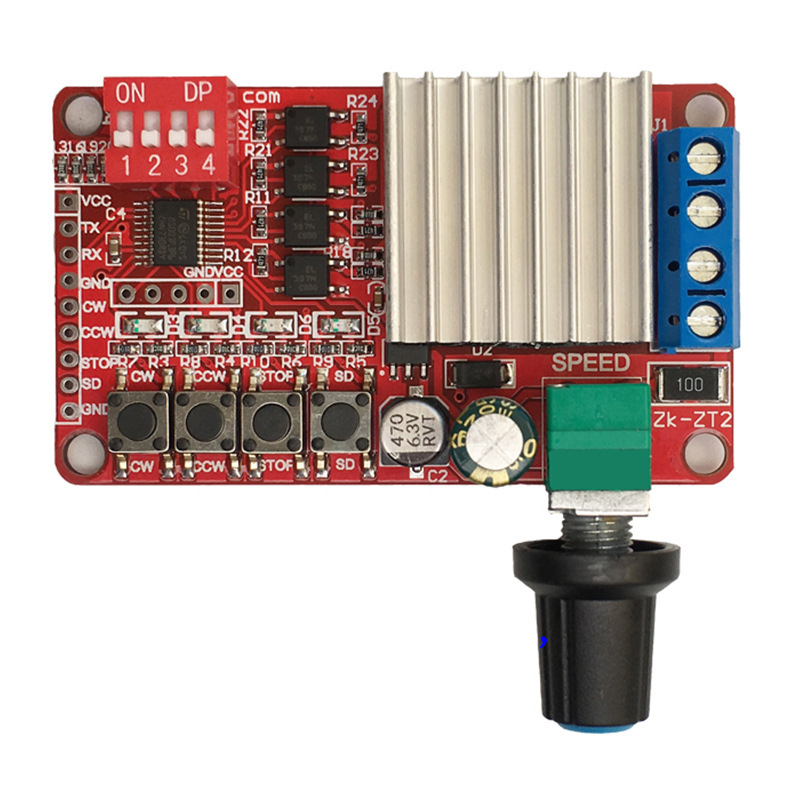

Manufacturer 5A/120W multifunctional motor speed controller

Suitable for testing DC motors, programmable control of DC motors (with 6 different state cycles and free loading), convenient for your work installation or other control!!!



Please read the user manual before using it. The download link for the user manual and upper computer software is:

https://pan.baidu.com/s/1JgmnF87P5LAp_5KTEP5nAQ

be careful!!!

1. Power and driver products belong to power products, and must be carefully read in the user manual or product description before use.

2. The positive and negative poles of the power supply should not be reversed, otherwise it will be damaged.

3. The maximum current of the module is 5A, 120W. When it heats up severely, reduce the rating to avoid overheating and burning out.



1. Baby highlights:

·It has four modes: manual control, automatic control, upper computer control, and serial port control.
·Equipped with upper computer software, the motor can be controlled or automatic control parameters can be set through the upper computer software, and the set parameters will not be lost in case of power failure.
·The control circuit and drive circuit have optocoupler isolation, which has strong anti-interference ability.
·Equipped with motor operation status indicator lights, all of different colors, indicating the current operating status.
·Selecting a rotary potentiometer with a switch can serve as both a power switch and convenient for speed regulation. The frequency adjustment uses a dip switch, which is easy and convenient to operate.
·There are external ports available for external control switches and TTL communication. After the software is set up, the program is loaded into the module.
·The operating status can be quickly switched, with no noise and no variable speed.

 gWmWivOiz9St5Ja2ZAY3YMGYEdsZyOOQKxWq







2. Product parameters:

1. Input voltage range: DC5V-26V. (No anti reverse protection)
2. Drive motor current: 5A high, instantaneous high current 50A. (No short-circuit protection, it is recommended to connect a 6A fuse in series at the output end)
3. Standby current:<5mA。
4. Speed range: By rotating the potentiometer, the speed can be adjusted continuously from 0% to 100%.
5. Frequency range:
[Manual control] There are 8 levels of 300Hz-10KHz.
【 Automatic, software, serial port control 】 300Hz-10KHz can be adjusted freely.
Note: The lower the selection frequency, the greater the fluctuation caused to the input power supply.
6. Serial communication: TTL level. (Cannot be directly connected to the 232 interface of the computer)
7. Working temperature: -40 ℃ -85 ℃.

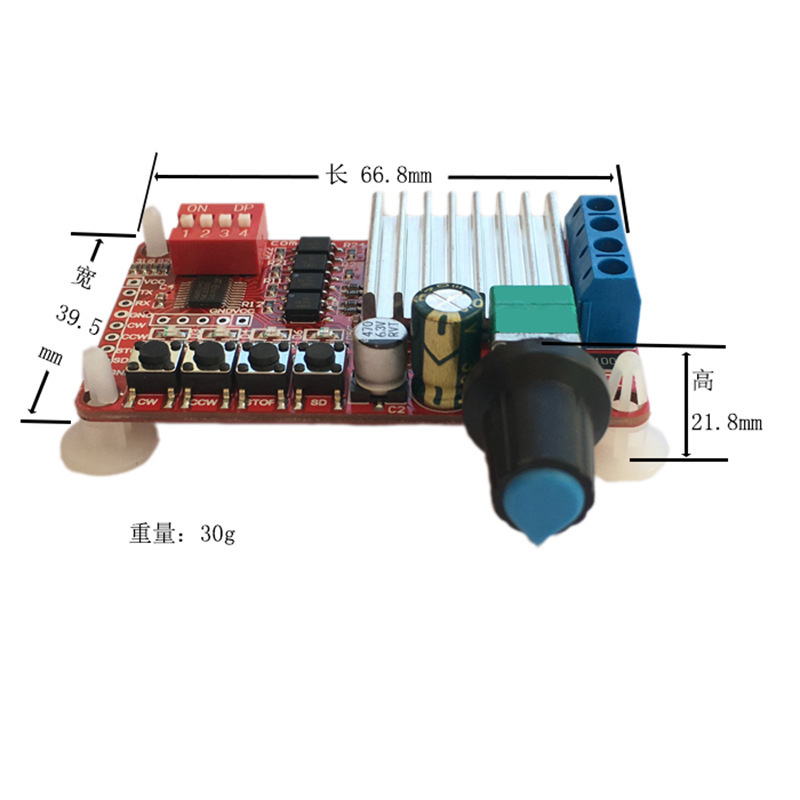

8. Size: Length, width, and height 67 * 39 * 15mm.



9. Installation hole: diameter 4mm.

10. Weight: 30g

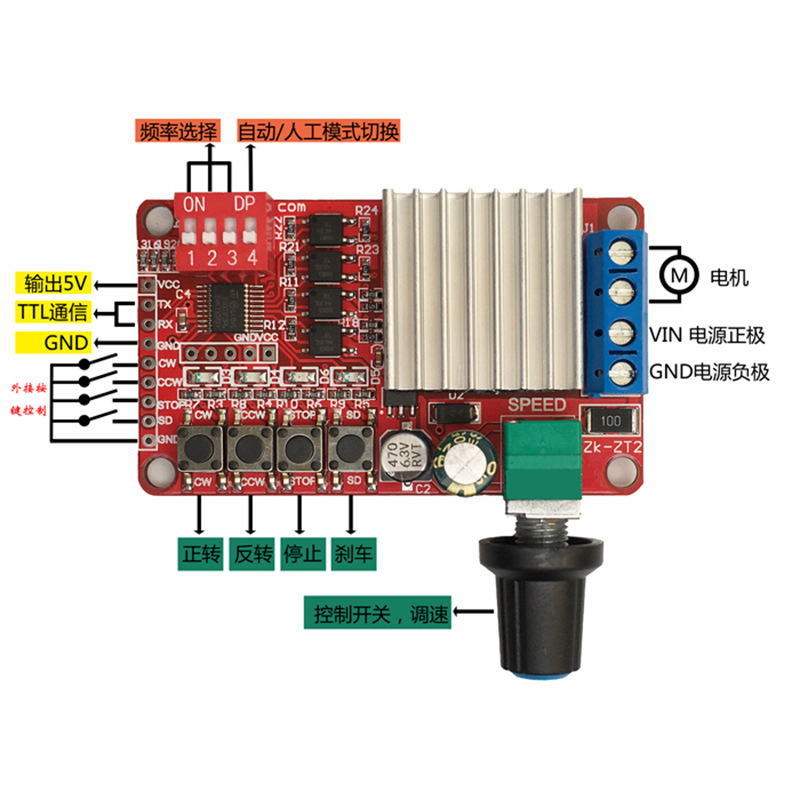

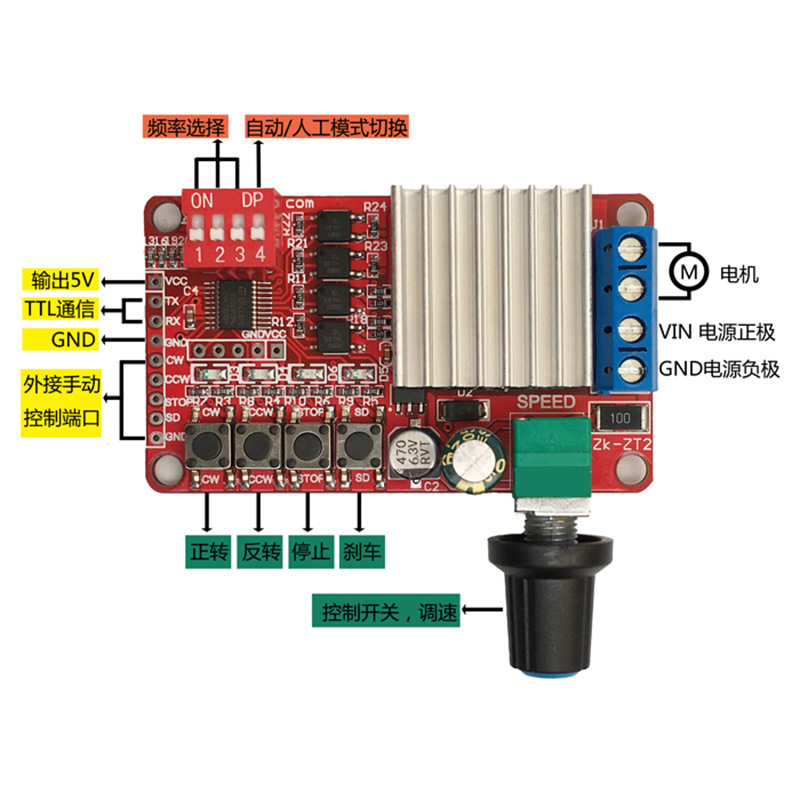

11. Introduction to signal interface terminal:
【 VCC 】 5V power supply output port, capable of supplying power to customers' 485 to TTL modules, USB to TTL modules, etc; The power supply current is 20mA.
[TX, RX] TTL communication interface, connected to the upper computer software.
【CW,CCW,STOP,SD】正转、反转、停止、刹车按键引出口，悬空时为高电平5V,可接按钮到GND,与模块上的按键等效,或接5V单片机IO控制,低电平触发(为保证可靠触发，低电平时间>100ms， Trigger the rear high position; If it remains low, it is also possible, but before the next action, be sure to set the port high first; When the 4th dip switch is set to the ON position, it is in automatic control mode, and the button or port is invalid.



3. Function Description:
