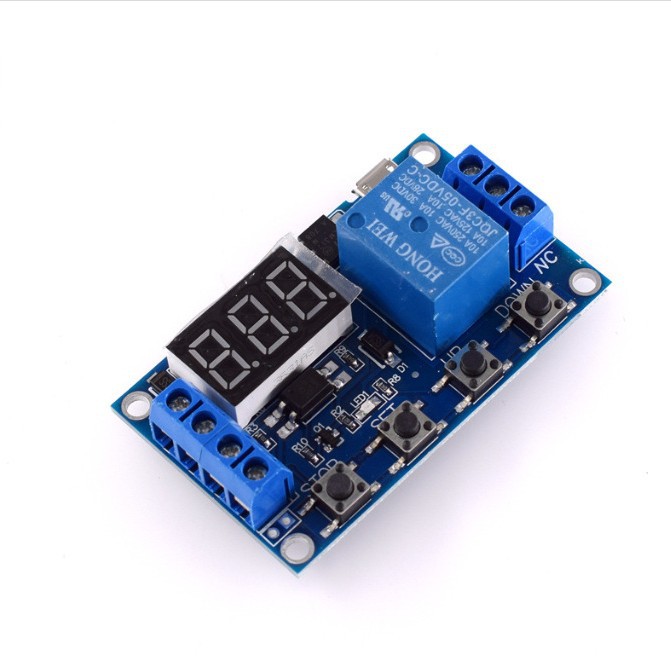

1-way delay power off disconnection trigger cycle timing circuit 6-30V switch relay delay module

Attention: This product is recommended to be powered by MIRCOUP port or 5V. Otherwise, 12V or

24V power supply, the power supply is prone to overheating after the relay is activated, and it is not recommended to use 12V and 24V power supply.

One relay module delay power-off disconnection trigger delay cycle timing circuit switch

0.1 seconds ()~999 minutes () continuously adjustable

This product is simple to use and has functions, but please take a detailed look at the operating instructions of this product. It is a very practical product.

Module highlights:

oneWide voltage power supply（6~30V）Supportmicro USB 5.0Vpower supplyVery convenient to use;

twoThe interface is clear and simple, with functions that are easy to understand, almost meeting all your needs;

threeThere is a one click emergency stop function（STOPKey)Equipped with reverse connection protection, reverse connection does not burn;

fourAfter adding sleep modes,fiveOperate within minutes and automatically turn off the monitor; Wake up with any button;

fiveCan be set differentlyOP、CL、LOPParameters, which are independent of each other and stored separately;

sixAll settings parameters will be automatically saved upon power failure.

working mode:

P1: After the signal is triggered, the relay conductsOPTime, then disconnect; inOPDuring the time, perform the following operations

P1.1：Signal triggered againinvalid

P1.2：Signal triggered againReset timer

P1.3：Signal triggered againresetDisconnect the relay and stop timing;

P-2Give a trigger signal and disconnect the relayCLAfter a certain period of time, the relay becomes conductiveOPAfter the timing is completed, disconnect the relay;

P3.1Give a trigger signal and the relay will conductOPAfter a certain amount of time, the relay will disconnectCLTime, then repeat the above actions, give the signal again within the loop, disconnect the relay, and stop timing; Number of cycles（LOP）Can be set;

P3.2Trigger signal after power on, relay conductsOPTime, relay disconnectedCLTime, cycle the above actions; Number of cycles（LOP）Can be set;

P-4If there is a trigger signal for the signal holding function, the timer will clear and the relay will remain conductive; When the signal disappears, start timingOPDisconnect the relay afterwards; During the timing period, if there is a signal again, the timing will clear;

Product Parameters:

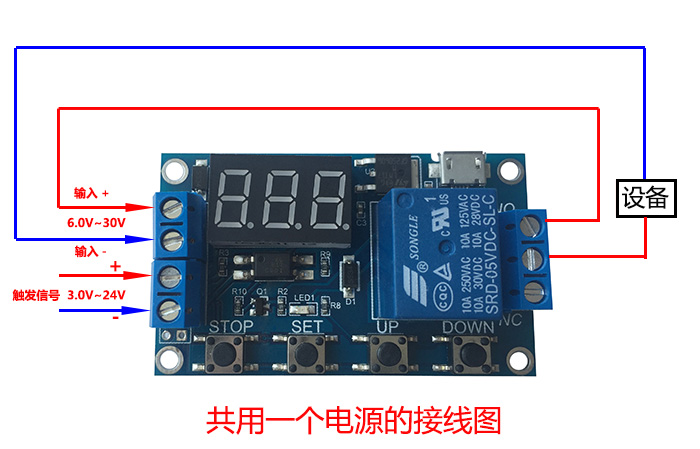

oneWorking voltage:6--30Vsupportmicro USB 5.0Vpower supply

twoTrigger signal source: High level trigger（3.0V—24V）The interference capability of a system where the signal ground is not shared with the system ground (or can be self shorted to a common ground)

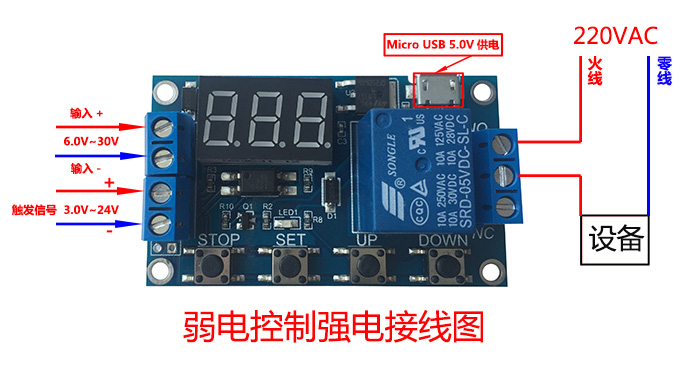

threeOutput capability: Can control DC30v Internally or through communication220vEquipment within

fourStatic current:20mAOperating current50mA

five: Service life: greater thantenTen thousand times; Operating Temperature-40—eighty-five℃ ； Size:6.2*3.8*1.7cm

sixEquipped with optocoupler isolation to enhance interference capability, industrial grade circuit board, set parameters after power failure

memory

Special note:The relay output is a passive contact that does not carry electricity and controls the continuity of a circuit.

Timing range

zero point oneSeconds ()~999Minutes () continuously adjustable

How to choose a timing range:

inMode selection interfaceAfter setting the parameter values, passshort pressSTOPkeySelect the timing range;

XXX.The decimal point is in units, timing range:onesecond~999second

XX.XThe decimal point is in ten places, and the timing range is:zero point onesecond~99.9second

X.X.X.The decimal point is fully lit, timing range:oneminute~999minute

For example, if you want to setOPyesthree point twoIn seconds, move the decimal point to ten places and the digital display will showthree point two

Parameter description:OPConduction time,CLDisconnect time,LOPNumber of cycles（one—nine hundred and ninety-nineNext time,“---”Represents infinite loops)

These parameters are independent of each other, but they are shared by various modes, such as inP1.1Set the conduction timeOPyesfiveSecond, the user wants to switch toP1.2Mode, then enterP1.2When setting the corresponding parameters,OPcould also befiveSeconds;

On the main interface (display)000）Short pressSETThe key will displayOP（CL，LOP）And corresponding timeXXX；

If there are onlyOP(For example, mode)P1.1，P1.2，P1.3）In terms of time, press the button brieflySETThe key will only displayOPAnd corresponding time;

If there areOP、CL、LOP(For example, mode)P3.1，P3.2）That short pressSETThe key will displayOPAnd corresponding time,CLAnd corresponding time,LOPAnd the corresponding number of times;

After setting the mode, short press on the main interfaceSETThe key can easily view the parameters set in the current mode, which is very convenient!

How to set parameters

oneFirst, determine the working mode of the relay;

twoAccording to the working mode of the relay, inMain InterfaceWhen the module is powered on, it will flash the current working mode (default)P1.1Mode), then entermain interface,）“long pressSETkeytwoRelease in seconds”EnterMode selection interface, by short pressingUP、DOWNPress the button to select the mode to be set（P1.1~P-4）；

threeAfter selecting the mode to be set (e.gP3.2）short pressSETkeySet the corresponding parameters, and the parameters to be set will flash（OPConduction time,CLDisconnect time,LOPNumber of cycles（“---”Representing an infinite number of loops), throughUP 、DOWNAdjust parameter values, support long press (increase or decrease) and short press (increase or decrease)oneIndividual units); After setting the parameter values, useshort pressSTOPkeyTo select the decimal point position and timing range（Corresponding timezero point onesecond~999minute）； short pressSETKey, set the next parameter for the current mode, the process is the same as above;

fourAfter setting the parameters of the selected mode,long pressSETkeytwosecondAfter releasing, the currently set mode will flash and then return to the main interface. Setting parameters is successful, very simple!

main interface:Display when the relay is not working“000”(No decimal point), the relay has a decimal point in its working state, very clear!

Mode selection interface: Long pressSETPress and hold the key to enter, after setting is complete, press and holdSETKey exit, return to the main interface, very simple!

STOPButton function extension:

Relay enable mode：

oneON ：OPThe relay is allowed to conduct during the conduction time;

twoOFFThe relay is prohibited from conducting and remains in a closed state at all times;

On the main interfaceshort pressSTOPPress the button to achieveONandOFFThe switch between them will cause the current state to flash and then return to the main interface. (This function is an emergency stop function, a relay that can be opened and closed with one click)

sleep mode：

oneC-PSleep mode: Within five minutes, the digital display will automatically turn off and the program will run normally;

twoO-dNormal mode: The digital display is always on;

long pressSTOPbuttontwoRelease in seconds to achieveC-PandO-dSwitching states will cause the current state to flash and then return to the main interface.
