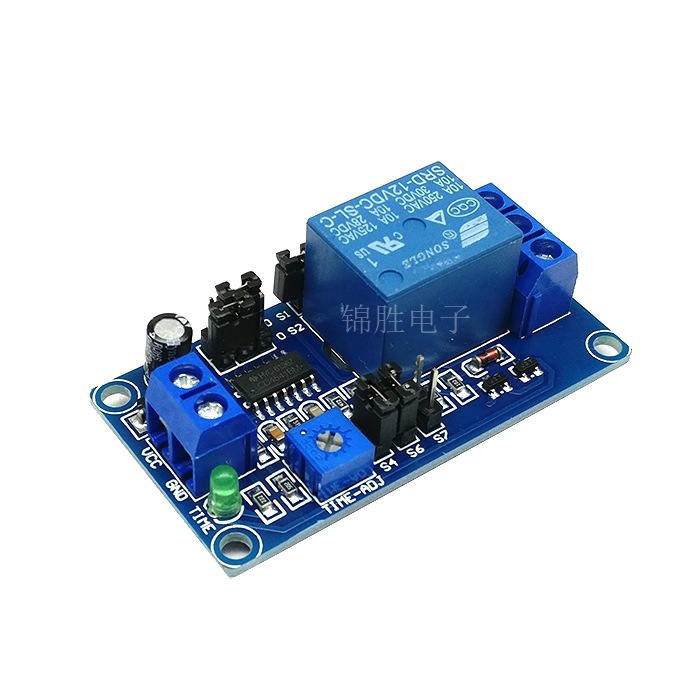

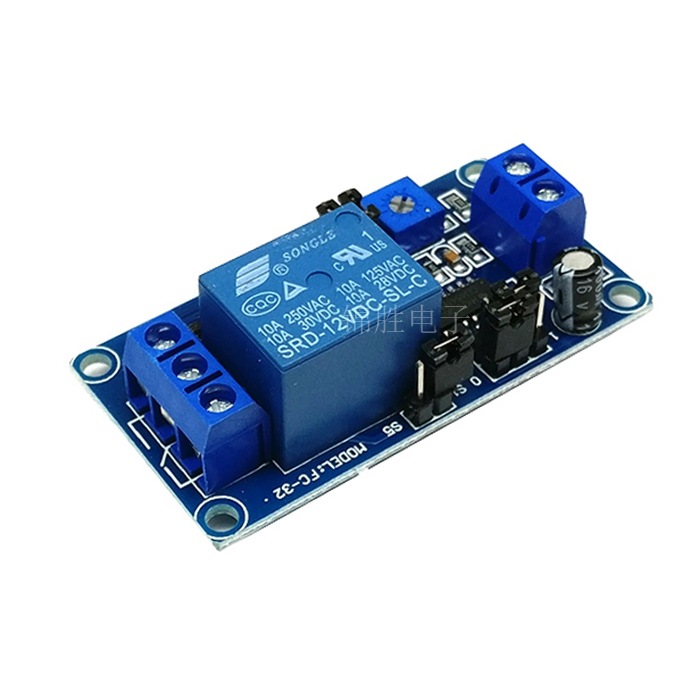

Power-on delay relay module disconnect function 5V12V delay circuit board
$2.25
- Stock: In Stock
- Brand: OEM
- Model: RLMGG1108
- Location: https://detail.1688.com/offer/624141920476.html
Link: https://pan.baidu.com/s/15gU-w339E_w_IC_A2KS13A Extraction code: muuy
Driving recorder, GPS start protection, household appliances, electronic device protection, audio protection, industrial control, PLc control 1、 Product application:
Manufacturing, electronic experiments, Arduino robots, with a wide range of applications
2、 Product Introduction:
1. Designed with high-performance delay chips, the performance is superior to that of the 555 chip
2. Provide 8 delay time ranges to choose from, with a delay time of 0.16 hours, to meet the vast majority of needs;
3. Equipped with two anti reverse power protection tubes, effectively protecting the product;
4. Can handle high current loads (250V ac 10A or 30V de 10A)
5. The output has the option of closing the power on delay relay or closing the pen after timing;
6. Equipped with a delay adjustment potentiometer, the clockwise adjustment time will be longer
3、 Function Introduction:
When S6 is plugged into the module and S7 is not plugged in, the timing starts immediately (with an adjustable time range) when the core block is powered on. At the same time, the relay is immediately closed, and the common terminal of the relay is connected to the normal start. The timing ends and the relay is released Connect the public end to the normally closed end.

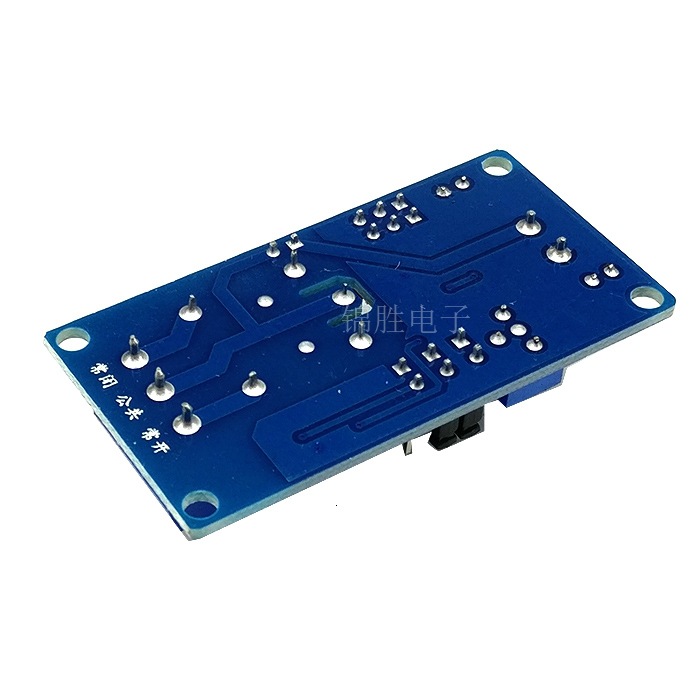

Physical shooting:
