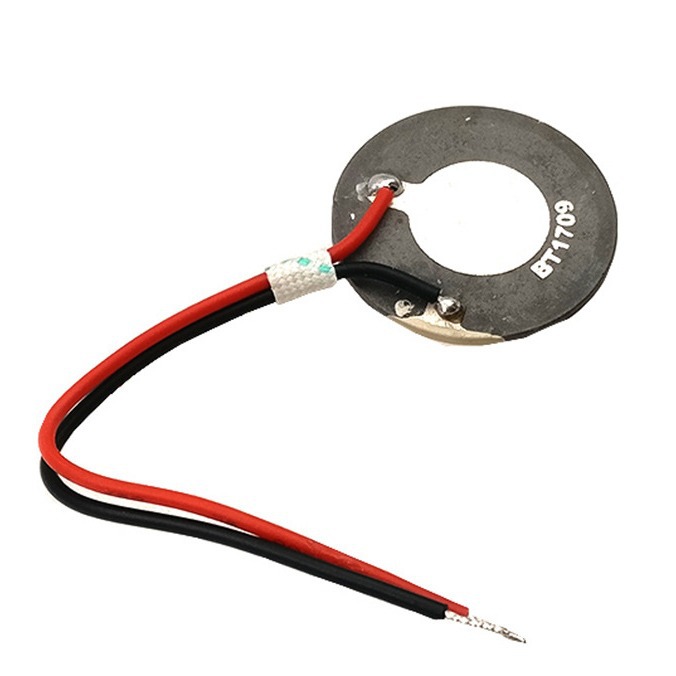

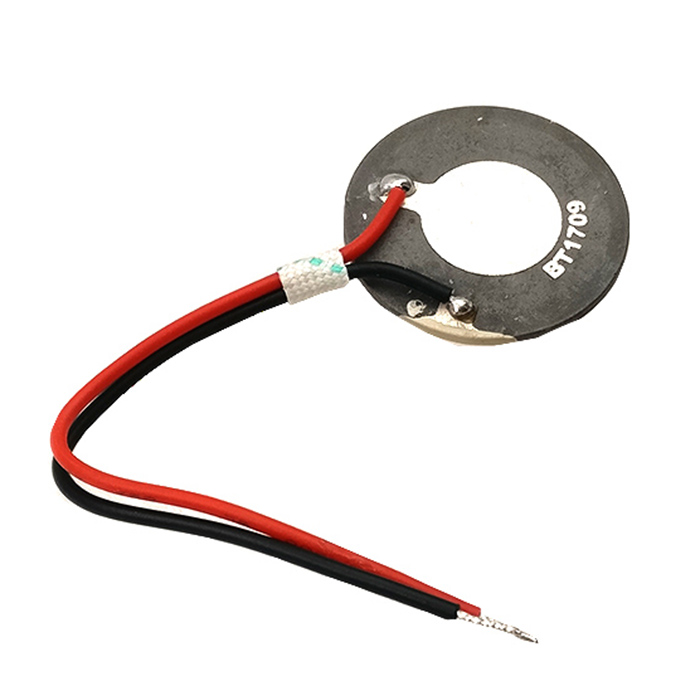

Manufacturer Sells 25Mm-1.7Mhz Ultrasonic Atomizer Sheet Humidifier Aromatherapy Machine Atomizer

Atomization transducer: using the principle of sound to turn water into tiny droplets into mist, widely used in hotels, bonsai, and home indoor humidity regulation to affect physical health due to dry air.

The atomizer cannot be directly connected to electricity for use, and can only be spray when it is used on the control panel..
Specification size: 25x1.2mm
Resonant frequency: 1.70MHz
Resonant resistance:<2 ohm
耦合系数:>52 %
Static capacitance: 1800pF
Atomization volume: 380ml/h

This atomizing plate is suitable for high-power atomizing plates with a diameter of 25mm.

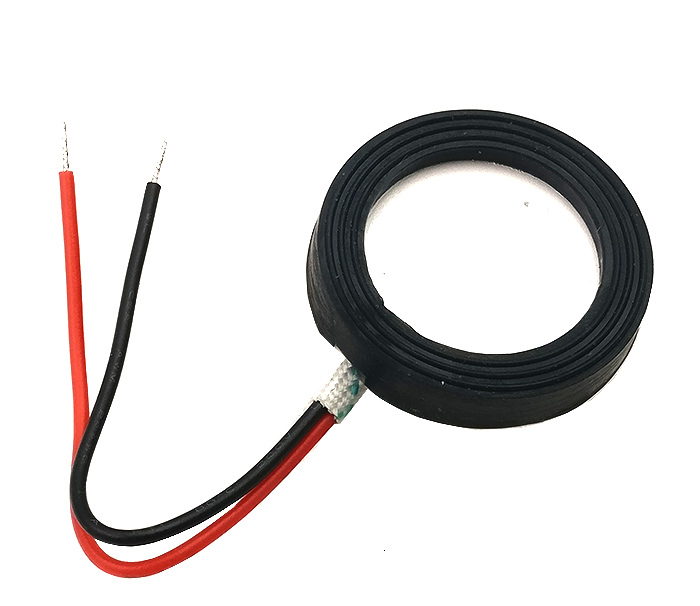

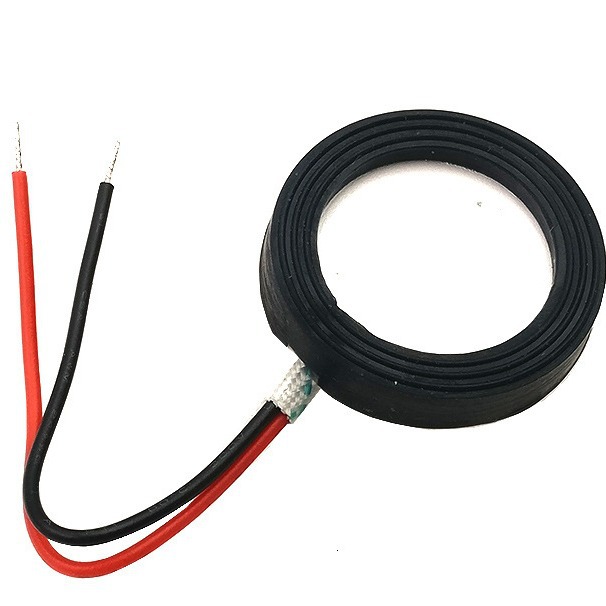

Attention: The diameter of 25mm refers to the size without the rubber ring. When measuring, be sure to measure the size without the outer rubber ring. The reason why the humidifier does not spray is that in addition to the atomizer, the failure of other electronic components will also cause non spray. Please make sure that the atomizer is the reason.
