Battery indicator battery indicator battery percentage display battery meter

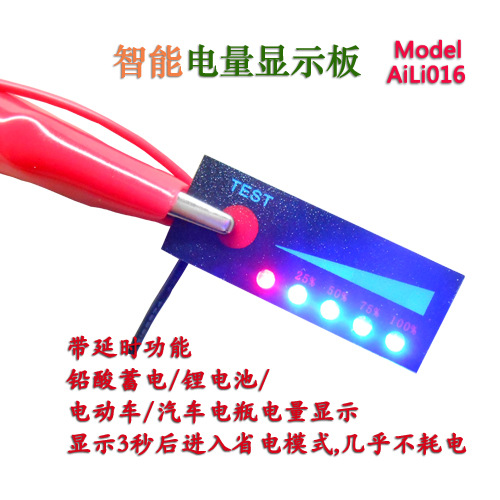

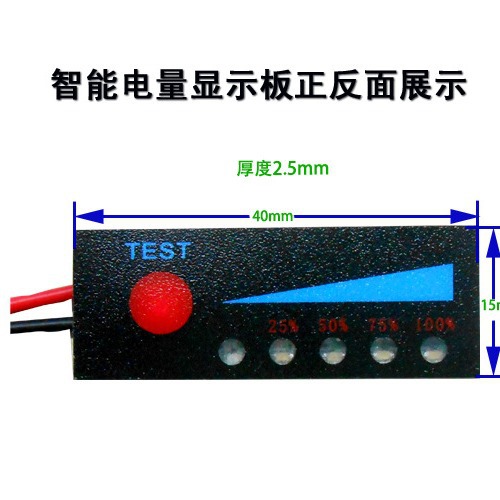

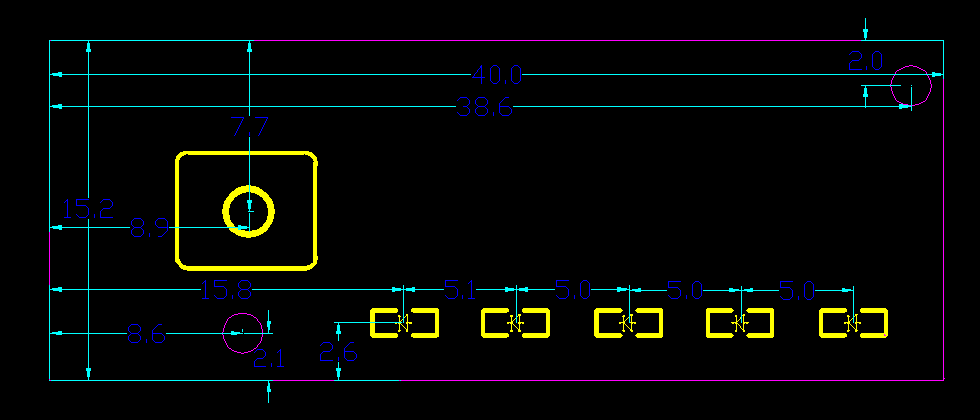

Product Features:1. Ultra thin battery display with 5 LED indicator lights, providing a more intuitive and aesthetically pleasing display.

2. It has a wider range of applications,Lithium batteries,lead-acid batteryLithium iron phosphate, electric vehicle batteryElectric equipmentBoth can be used.

Usage:

Warm sound prompt: 3.7V lithium battery is used1 red onePower indicator light,4 green onesPower indicator light, for other voltage ranges1 red onePower indicator light,4 green onesPower Indicator Light

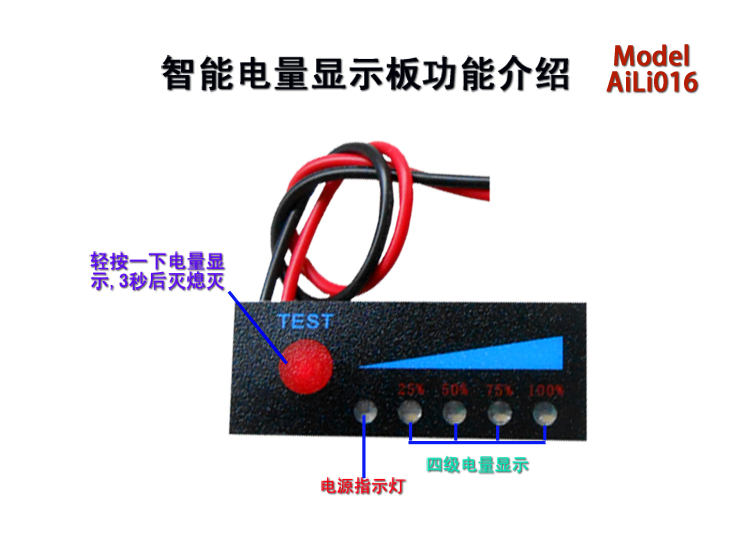

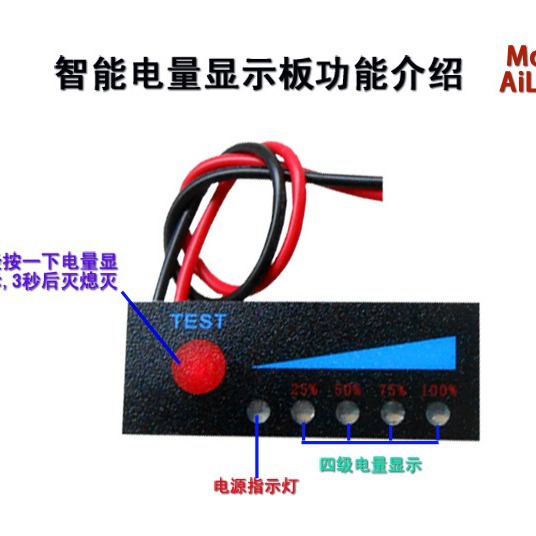

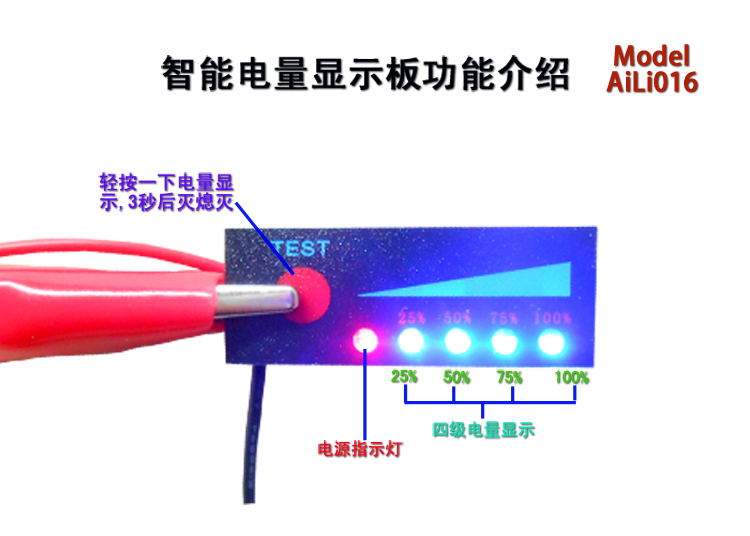

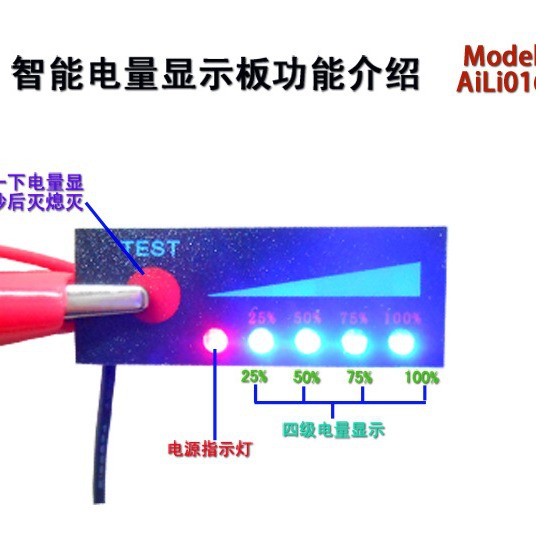

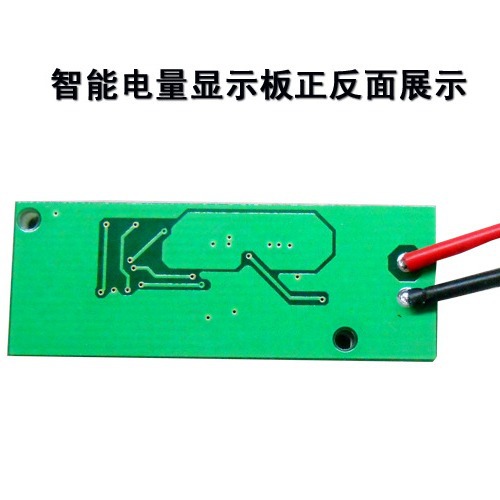

oneConnect the positive and negative terminals of the display board to the positive and negative terminals of the tested battery,Gently press the red button with your fingers, IEDThe light is onDisplay real-time battery level

twoRelease your fingers, LEDThe light will turn off after a delay of 3-10 seconds,It consumes no power at all when static.

threeWith reverse connection function, even if the positive and negative connections are reversed, it will not burn out. Simply adjust it.

Lithium battery displayshowElectricity parameter:（The following data is a reference value with an error range of 2%,Do not take photos that require high precision）

Warm sound prompt:What is the 3.7V lithium battery used for1 red onePower indicator light，4 green onespower levelIndicator light（What are the other voltage ranges1 red onePower indicator light，4 blue onesPower indicator light)

(Note: N represents the number of battery cells)

The first power indicator light isred

The battery voltage is greater than N×3.3V,Liang Di2 of themblue

The battery voltage is greater than N×3.5V,Liang Di3 of themblue

The battery voltage is greater than N×3.7V,Liang Di4 of themblue

The battery voltage is greater than N×3.9V,Liang Di5 of themblue

12V Lead Acid Voltage Range:(Four series lithium iron phosphate batteries can be used)

The first power indicator light isred

The battery voltage is greater than11.0V,Light up the second oneblue

The battery voltage is greater than11.3V,Illuminate the third oneblue

The battery voltage is greater than11.6V,Bright 4th oneblue

The battery voltage is greater than12.9V,Bright the 5th oneblue

24V Lead Acid Voltage Range:(Can use 8 series lithium iron phosphate batteries)

The first power indicator light isred

The battery voltage is greater than22.5V,Light up the second oneblue

The battery voltage is greater than24V,Illuminate the third oneblue

The battery voltage is greater than25.2V,Bright 4th oneblue

The battery voltage is greater than26.4V,Bright the 5th oneblue

36V Lead Acid Voltage Range:(12 series lithium iron phosphate batteries can be used)

The first power indicator light isred

The battery voltage is greater than33.5V,Light up the second oneblue

The battery voltage is greater than35.2V,Illuminate the third oneblue

The battery voltage is greater than37V,Bright 4th oneblue

The battery voltage is greater than38.7V,Bright the 5th oneblue

48V Lead Acid Voltage Range:(15 or 16 series lithium iron phosphate batteries can be used)

The first power indicator light isred

The battery voltage is greater than44.8V,Light up the second oneblue

The battery voltage is greater than47V,Illuminate the third oneblue

The battery voltage is greater than49V,Bright 4th oneblue

The battery voltage is greater than52V,Bright the 5th oneblue

60V lead-acid voltage range:(19 or 20 series lithium iron phosphate batteries can be used)

The first power indicator light isred

The battery voltage is greater than55.1V,Light up the second oneblue

The battery voltage is greater than58.1V,Illuminate the third oneblue

The battery voltage is greater than61.5V,Bright 4th oneblue

The battery voltage is greater than64.6V,Bright the 5th oneblue

72V lead-acid voltage range:(23 or 24 series lithium iron phosphate batteries can be used)

The first power indicator light isred

The battery voltage is greater than68V,Light up the second oneblue

The battery voltage is greater than71.9V,Illuminate the third oneblue

The battery voltage is greater than75.7,Bright 4th oneblue

The battery voltage is greater than79.6V,Bright the 5th oneblue
