4000W high-power thyristor electronic voltage regulator dimming speed regulation temperature regulation with insurance shell

Please take a look before placing the order: This product has an AC voltage of 220V input and output, and can only be stepped down. It can only be adjusted when connected to a load. It is useless to connect a multimeter without load, not a transformer. Please read all the instructions on the product page before placing the order!

Power: 4000W (resistive load limited power), power should be reduced for long-term use. (Recommended load within 1600W power)

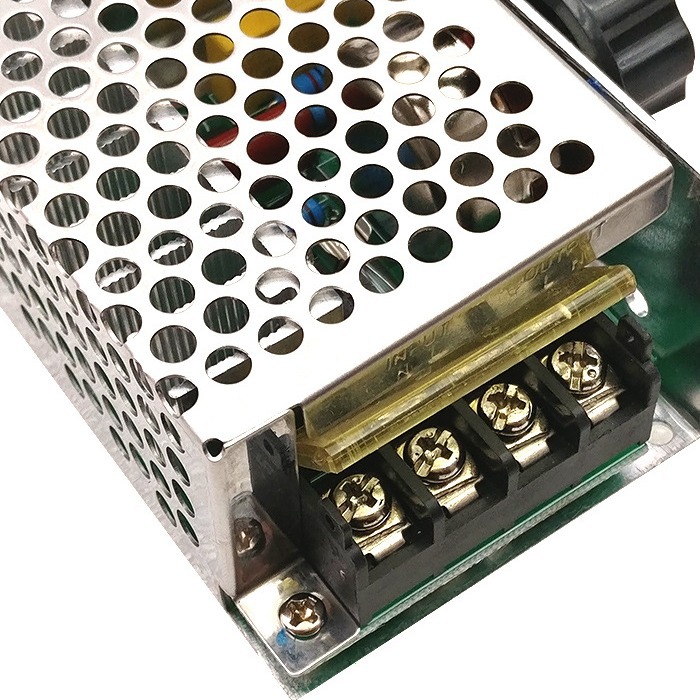

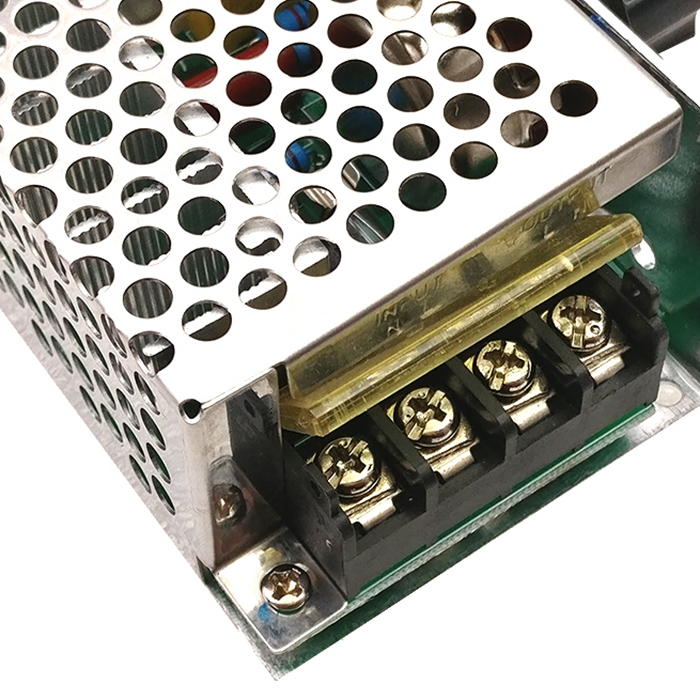

Voltage interface terminal cover 1 2 for input 3 4 for output

Pay attention to connecting the load first and then adjusting the voltage.
Controllable silicon is mainly used for resistive loads (such as electric heating filament incandescent lamps), and most single-phase AC motors can also be used, but not all can be guaranteed. For other types of loads, please confirm by the buyer. Fuses are not, they have a response time. If the current is too high, in addition to burning out the fuse, the module may also be burned out.

2. Chips, how to easily distinguish domestic chip buyers online can contact customer service for consultation. Buyers who need domestically produced chips to reduce costs can contact customer service for customization.

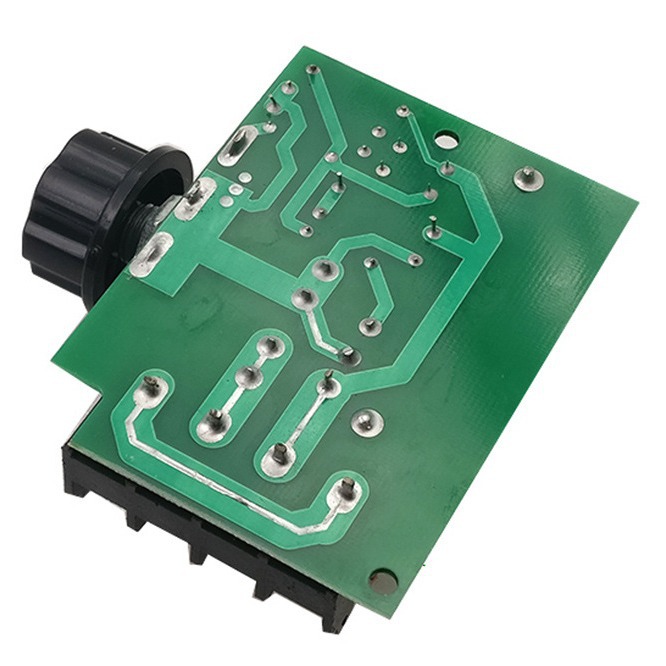

3Double panel designOther companies use single panel technology. Those who are knowledgeable know that single panel solder pads are prone to detachment, and no matter how well crafted they are, they cannot compare to double-sided panels. Single panel technology is not suitable for industrial products.

The following picture is a comparison between the double-sided panels in our store and those in other stores. Both double-sided panels have tin plates and wiring on the front.

4. All the materials are available for comparison.

Power: 4000W (resistive load power limit), power should be reduced for long-term use. It is recommended to use a resistive load at room temperature within 2000W (key parameters, please pay attention).

Good news, the 4000W voltage regulator has undergone another technological upgrade,The range of voltage regulation can be from10V-220VSmooth and adjustable, more suitable for industrial enterprises that require low voltage to drive heating wires, such as cutting foam, pearl cotton, raincoat production, etc.

Specifications:

Product Name: 4000W AC Voltage Regulator

Controllable silicon model: BTA41600B

Size: Length 85 * Width 55 * Height 38mm, knob inner hole 6mm

Power: 4000W (resistive load limited power), power should be reduced for long-term use.

Efficiency: Over 90%

Working voltage: AC 220V

 Voltage regulation: AC 10-2220V

Voltage regulator size: 85mm in length, 55mm in width, and 35mm in height

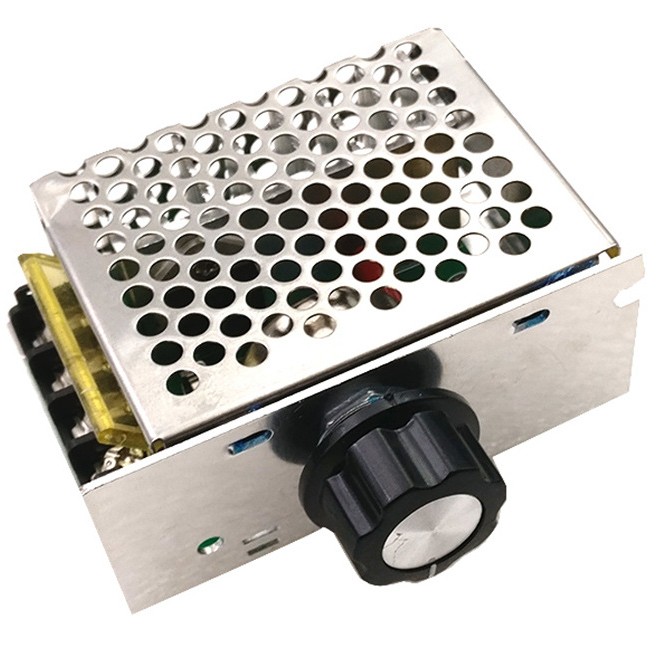

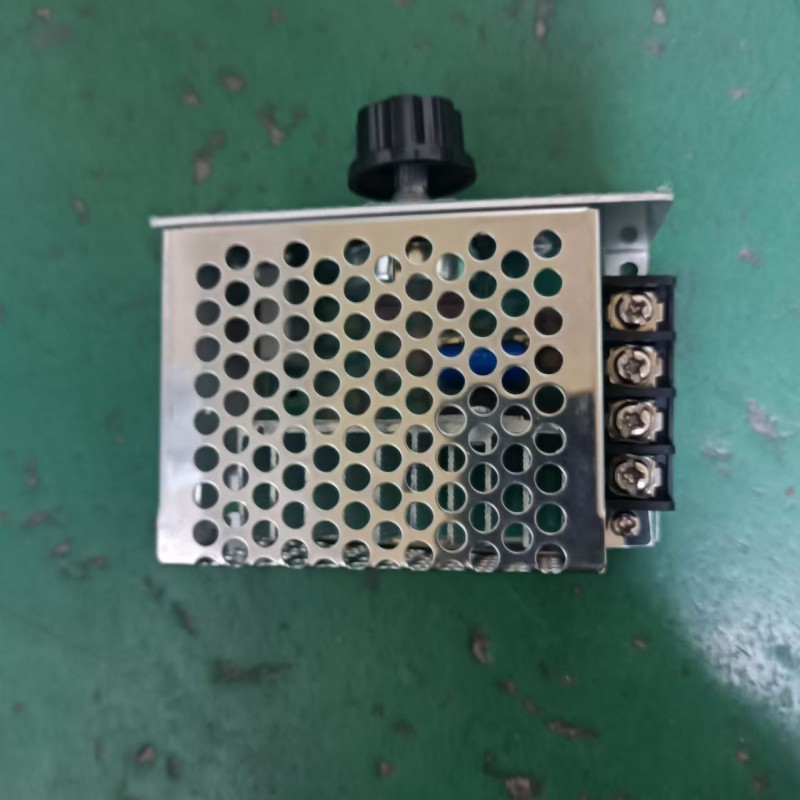

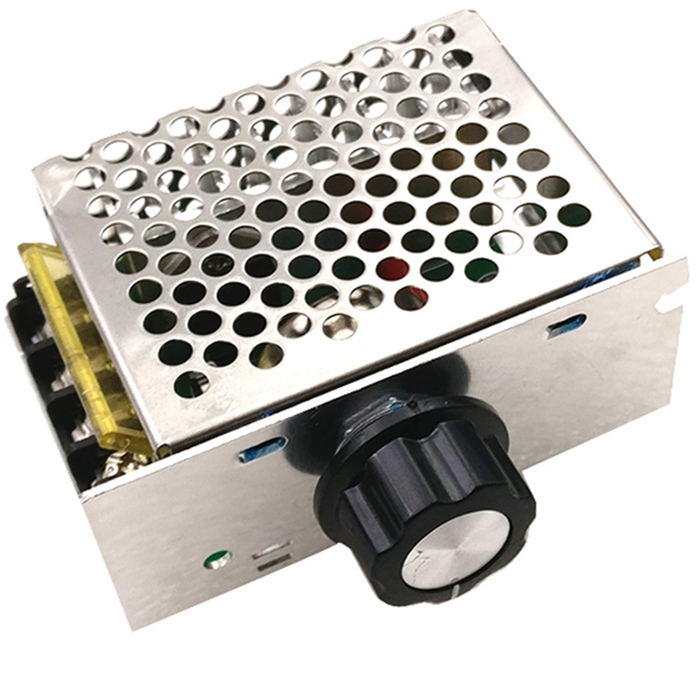

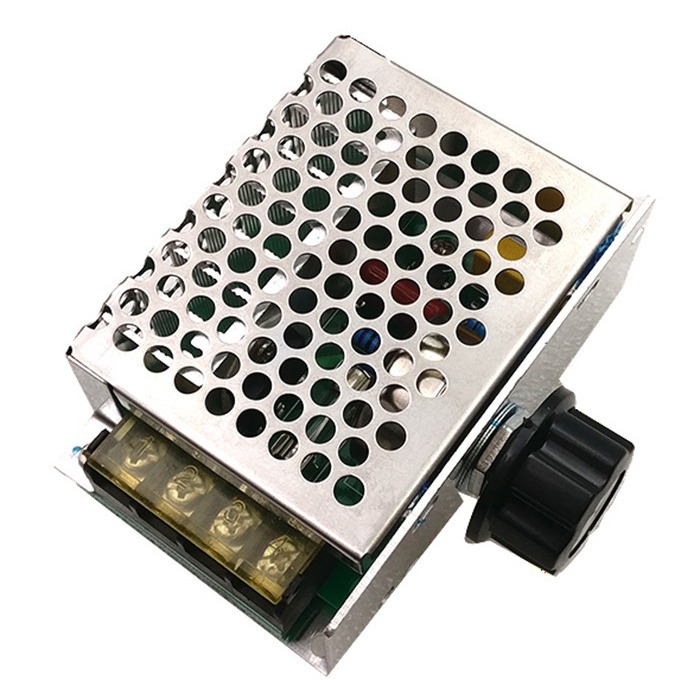

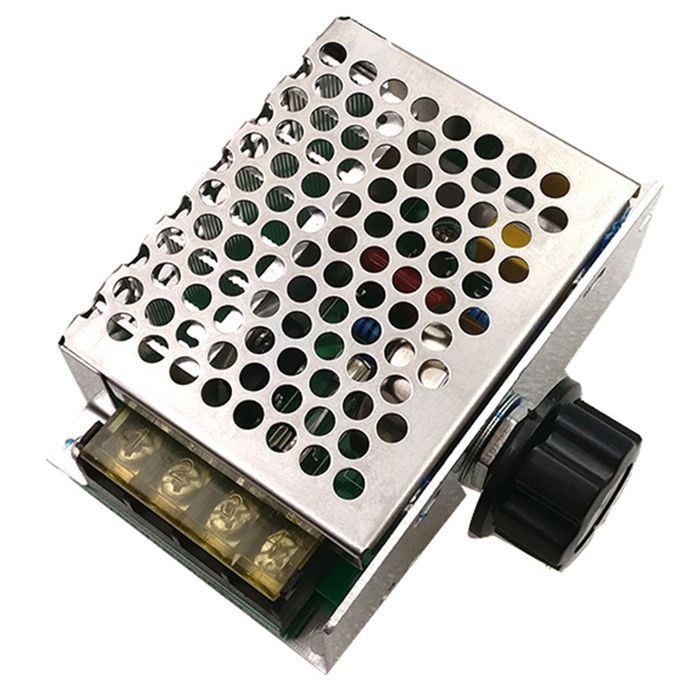

Voltage regulator with shell and fuseEasy to installMore suitable for households and factories that are inconvenient to install.

Use the original GLA thyristor（Every product in our store is made with substandard materials

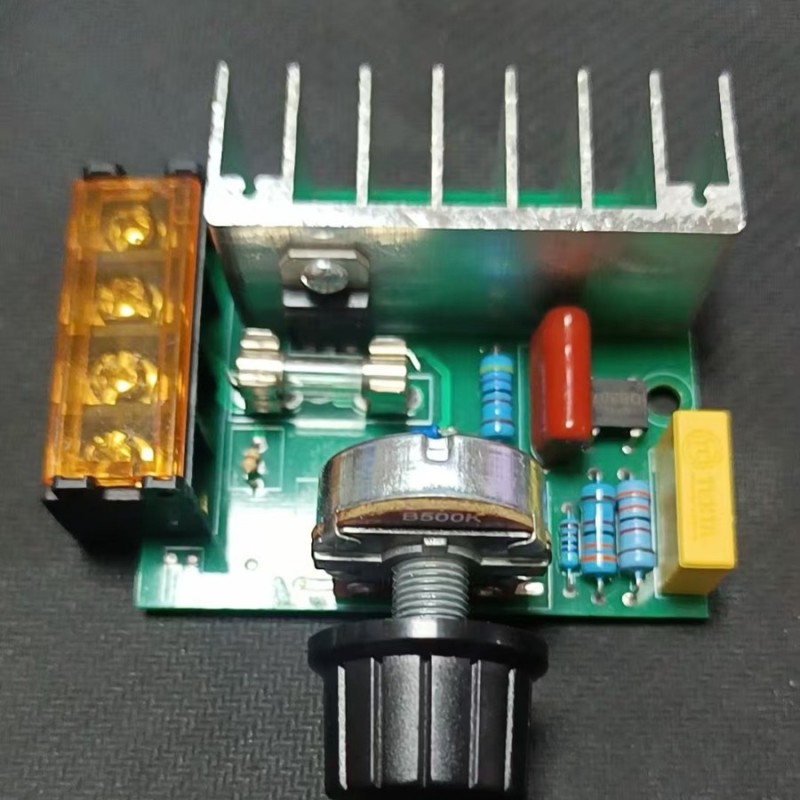

use1.6 thickFR-4High temperature resistant circuit board, with reasonable circuit design and adoptingplusLarge thickeningThe welding circuit design is sufficient to handle even high currents, making it more reliable to use.

The shop owner disregarded the cost and adopted a standard 4-position terminal block, which resulted in a 4000W design. (two entries and two exitsMore convenient for wiring).

The circuit has undergone multiple technological improvements, and each component is now fully technologically mature. Adopting a dual capacitor design(Safety capacitor+metal film capacitor) effectively absorbs surges and voltage spikes, provides more effective protection for thyristors, and has higher efficiency in use.

Note:
