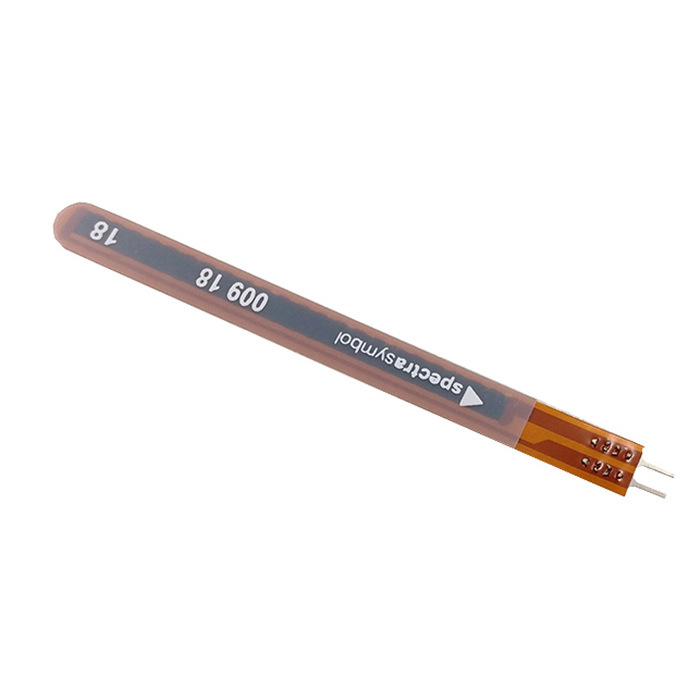

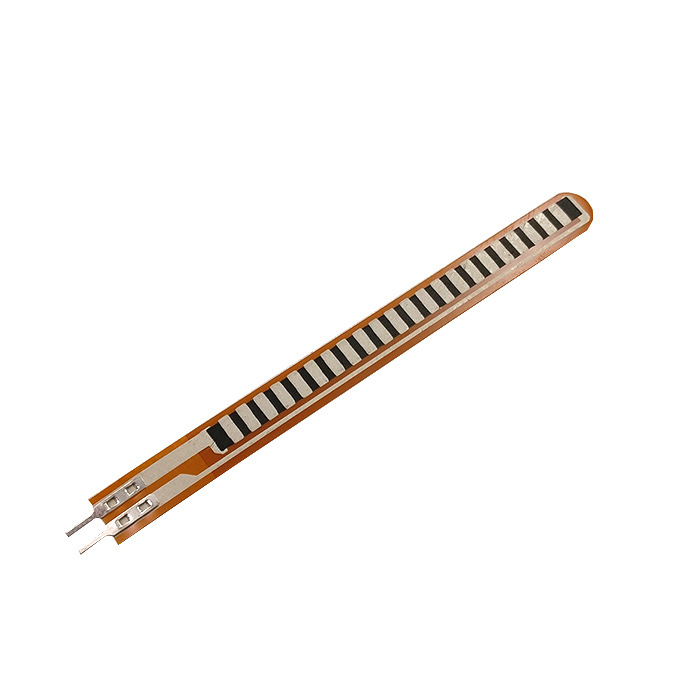

Original imported spot flex 2.2 4.5 bending sensor robot hand electronic hand Development Kit

Demo video viewing address (copy to browser address bar to open for viewing):

http://cloud.video..com/play/u/1028888538/e/1/t/3/p/2/38906491.swf

Product Information:http://pan.baidu.com/s/1i59T1o5

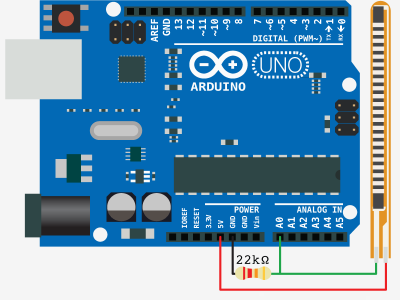

Flex 2.2 bending sensor robot hand electronic glove for Arduino recommendation

Introduction

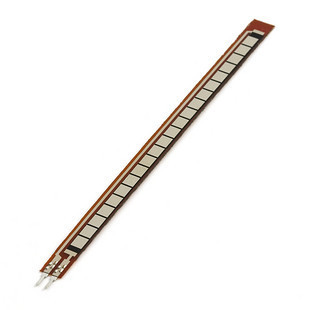

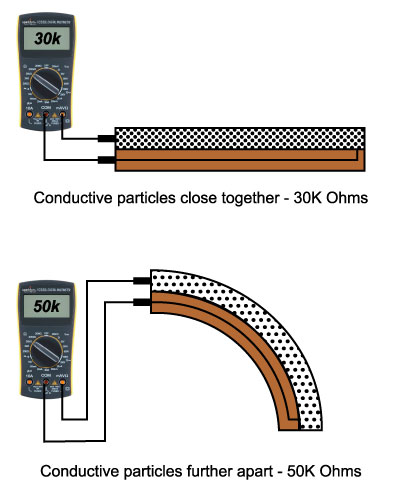

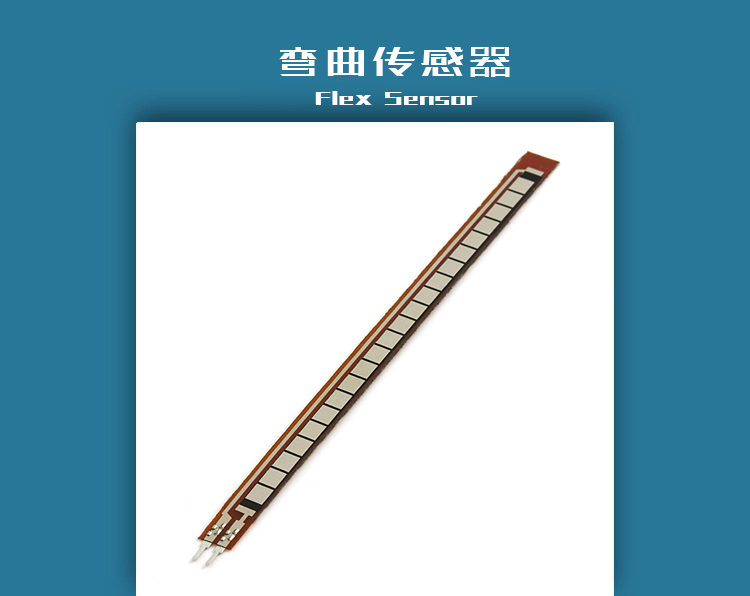

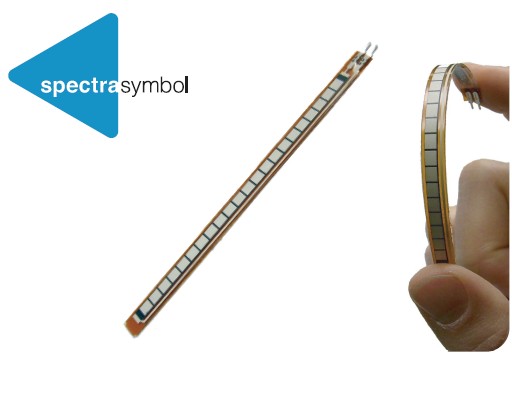

This is a 2.2 "bending sensor. The degree of bending of the sensor can be converted into a change in resistance value, and the greater the bending, the higher the resistance.

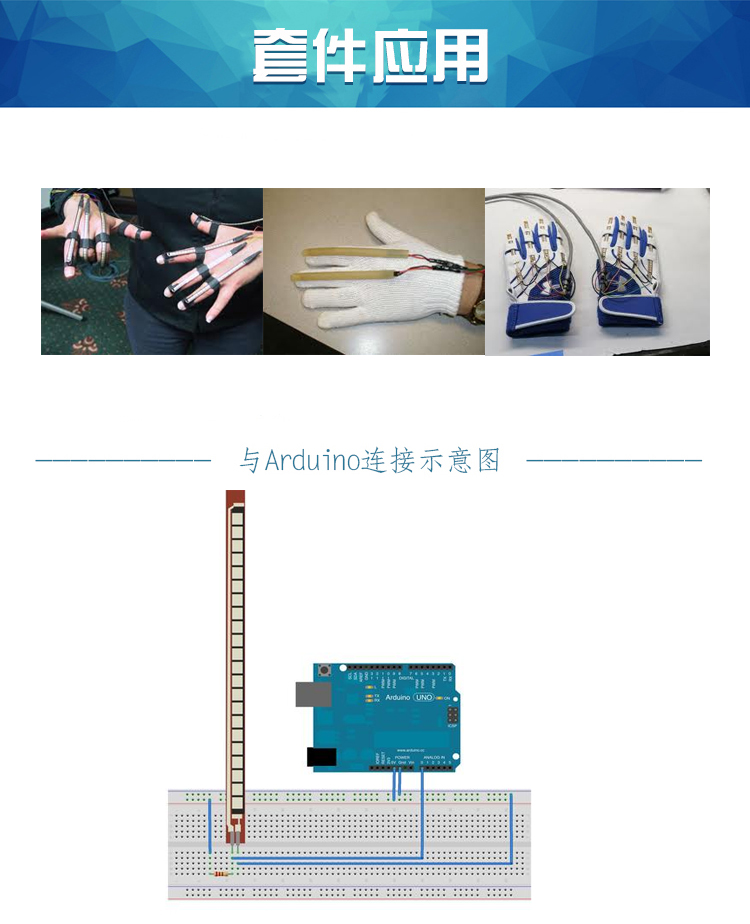

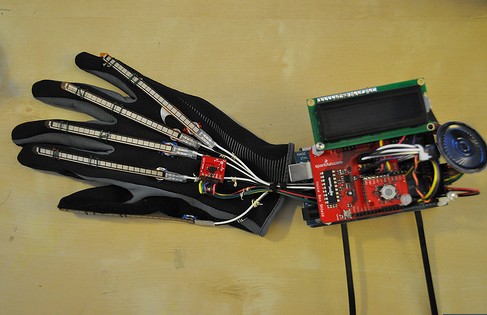

This sensor can be used to make energy gloves, please refer to the application link for details.
Attention: Bending direction: The side with words is the inner side when bending. When using, avoid bending the end pin part (i.e. non bent sensing part), otherwise it may cause damage.

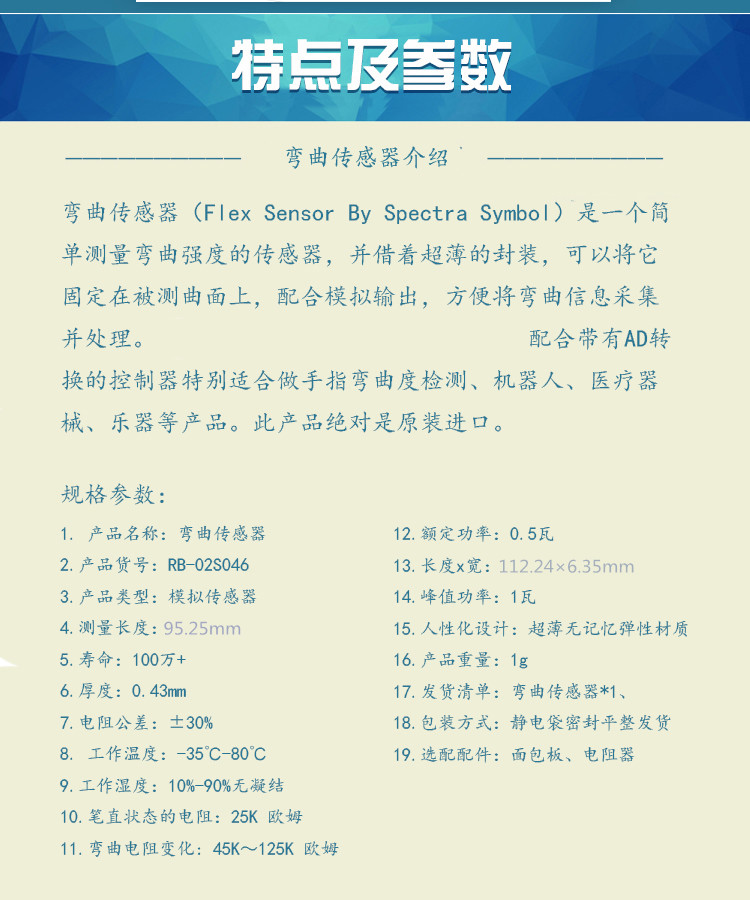

Technical Specifications

Resistance in a straight state: 25K ohms
Resistance tolerance: ± 30%
Bending resistance variation: 60K~110K ohms
Rated power: 0.5 watts
Peak power: 1 watt
弯曲寿命：>Once
Working temperature: -35 ° C to+80 ° C
Length x Width: 73.66x6.35mm
Interface type: 2-Pin metal pin (spacing 0.1 ")

Delivery List

2.2 "bending sensor 1 piece

Instructions for Use:

http://www.imagesco.com/sensors/flex-sensor.html

http://itp.nyu.edu/physcomp/sensors/Reports/Flex

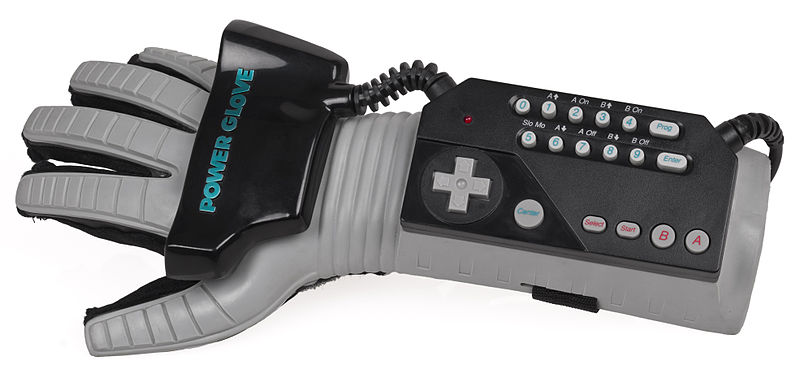

Related application examples:http://en.wikipedia.org/wiki/Power_Glove
